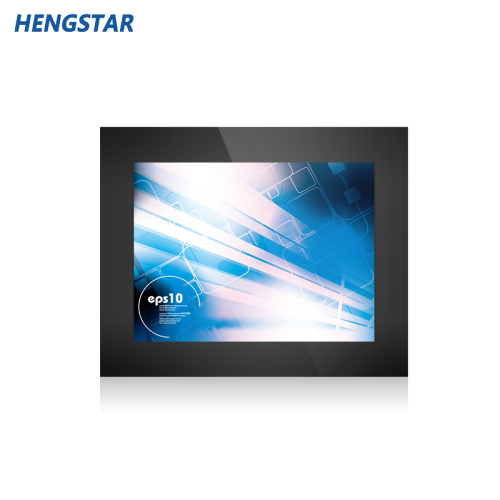

17.3 Inch Multimedia Full HD Display
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3-15 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 5000 |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | ROHS, FCC, CE |
| Transportation: | Ocean,Air |
| Port: | Shenzhen |
Wall Mount Vesa Monitor The liquid crystal display is an active matrix liquid crystal display driven by a thin film transistor (TFT). It mainly uses a current to stimulate the liquid crystal molecules to generate dots, lines, and surfaces to match the back light tube to form a picture. IPS, TFT, and SLCD are all subclasses of LCD. LCD products are non-active light-emitting electronic devices. Wall Mount Vesa Monitor They do not have light-emitting characteristics. They must rely on the emission of light sources in the backlight module to obtain display performance. Therefore, Wall Mount Vesa Monitor the brightness of the LCD is determined by its backlight module. It can be seen that the performance of the backlight module directly affects the display quality of the liquid crystal panel Wall Mount Vesa Monitor .
Wall Mount Touch Screen Monitor Key Features:
★ High Definition TFT Advertising Player (16:9), Built-in Speaker,
★ Support decoding HD 1080P video programs;
★ Support USB Disk Play Media
★ Support format video: MPG. MPG-1 MPG-2 MPG-4 AVI MP4 DIV TS TRP
★ WMV RMVB audio: MP3 WMA pictures: JPEG BMP, etc.
★ Language menu: default Chinese (multi-language support);
★ Standard VESA holes to ensure the easy installation;
★ Remote control, human-oriented operation interface;
★ Touch Screen : Capacitance or IR multi-point (Optional)
Item No.
HSIM-1735-VM
LCD Screen
Size
17.3’’
Aspect Ratio
16:9
Pixel Pitch
0.153*0.153 mm
Resolution
1920*1080 (2K)
Active Area
293.76*165.24mm
View Angle
170° (H)/170° (V)
Brightness
300 nits
Contrast Ratio
800:1
Colors
16.2M
Touch Screen
Technology
Capacitive screen(Optional)
Active Area
294.76*166.24mm
Screen Thickness
1.8 mm
Resolution
4096*4096
Response Time
Below 10ms
Light Transmission
>80%
Touch Media
Finger, stylus, rubber
Durability
More than 10,000,000 single touch
MTBF
>60,000 hours
Display System
Scaler (V59)
Mstar-V59 IC
Power requirement
+12V
Rear Panel I/O
1*HDMI
1*DVI
1*VGA CRT
AUDIO-R/L Output
Quality Approval
Fire-resistance
UL-94HB
Water-resistance
NEMA4(Optional)
Chemical-resistance
Active area of Touch is resistant for acetone, toluene, butanone, acetylacetone, methanol, acetic acid, gas, coal oil, and Vinegar.
Certificate
RoHS, FCC (Part 15)
CE (EN55022 and EN55024)
Environments
Temperature
Operation: -10°C ~ 60°C
Storage: -20°C ~ 70°C
Humidity
Operation:10%~90% RH
Storage: 5%~95% RH
Power Supply
Power Input
12V DC
Power Consumption
Approx. 30 Watts
Weight
Gross Weight
3.5 kgs
Net Weight
3.0 kgs
Dimension
PC Dimensions
332.06*213.66*34.85mm
Mounting Cutout Dimensions
75*75mm
Mount
Embedded Mount, Panel Mount(Optional)
Accessories
AC Adapter, Power Cord, Touch Driver(Optional)
1 *USB ports
1*DC (in)
Application
Wall Mount Touch Screen Monitor, Wall Mounted Touch Screen, Wall Mount Vesa Monitor, Wall Mounted Touch Screen Display
