19 inch Open Frame lcd Monitors
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Productivity: | 500 |
| Supply Ability: | 5000 |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | ROHS, FCC, CE |
| Transportation: | Ocean,Air |
| Port: | Shenzhen |
Hengstar provides touch screen monitors with slim open front frame design and supports rear mount and VESA mount with integrated bracket design for easy installation.
Open Frame Monitor, open frame lcd monitors, Open Frame Touch Screen, Open Frame Touch Monitor, open frame displays, open frame lcd display

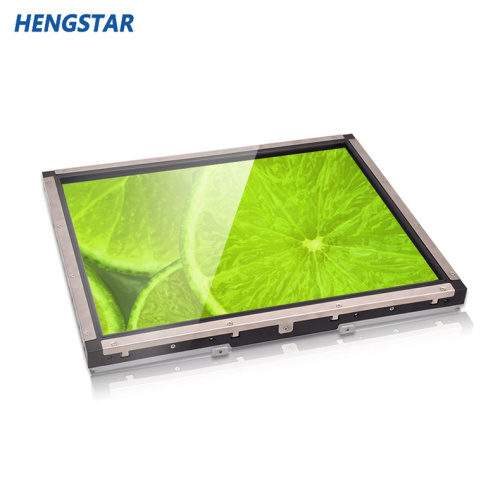

19 inch Open Frame lcd Monitors
Key Features:
19’’ FHD 1920*1080 TFT LCD panel
Low power consumption LED backlight, 700nits brightness
Sunlight readable
Integrated with LCD controller and power supply
Easily mounting into custom enclosure
VGA, HDMI 1.4 inputs
100-240V AC power input
Industrial Tft LCD Panel
Built-in speaker, stereo audio output
Ventilation holes, high heat dissipation efficiency
Good image quality
Supports custom ports and 1080p Full HD lossless signal transmission
Meet any high-definition signal transmission needs.
Support Full HD 1920 * 1080 resolution
LED backlight and brightness options
Supports custom ports and 1080p Full HD lossless signal transmission
LED enhanced high-brightness open frame monitor for outdoor kiosks and many other areas.
According to different application environments, the display can have different brightness, such as
300/350/1000/1500/3000 nits
Touch options
Supports custom ports and 1080p Full HD lossless signal transmission
Resistive touch, SAW touch, infrared touch, capacitive touch
Open frame type option
Supports custom ports and 1080p Full HD lossless signal transmission
Can provide OEM / ODM services
Therefore, the display can adopt two different designs, closed and open.
Product Specification
|
Model No. |
HSOM- HB5501 |
|
|
LCD panel (LD550EUN-UHA1) |
Size/Aspect ratio |
55’’/16:9 |
|
Pixel numbers |
1920(H)*1080(V) |
|
|
Brightness |
700 cd/m2 |
|
|
Contrast Ratio |
1300:1 |
|
|
Viewing Angle |
178° (H)/178° (V) |
|
|
Colors |
1.07 B |
|
|
Input terminals |
Signal |
VGA , HDMI, RCA, USB |
|
Power plug |
100-240V AC |
|
|
OSD Control |
Menu /Select, Auto, Up, Down, Power; IR remote |
|
|
Environments |
Temperature |
0°C to 50°C (Operating) -10°C to 60°C (Storage ) |
|
Humidity |
10% RH to 90% RH (Operating) 5% RH to 95% RH (Storage) |
|
|
Power |
Input Voltage |
100~240V AC, 50/60Hz |
|
Operation |
120 watt |
|
|
Stand-by |
‹5 watt |
|
|
Weight |
N.W. |
28Kgs |
|
Mount/installation |
Flanges |
|
|
Accessories |
Power cord, IR remote |
|
