Touch Screen Smart Cloud All in One PC
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Air, Express
- Port:
- Shenzhen, Hong Kong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 5000 |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CIF,EXW |
| Transportation: | Ocean,Air,Express |
| Port: | Shenzhen,Hong Kong |

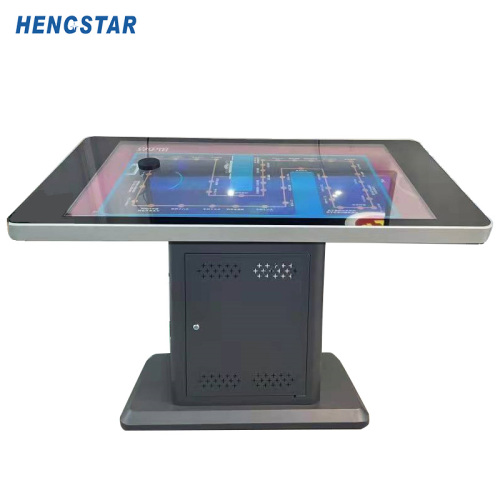

Hengstar Smart Cloud All-in-One PC is a 5G communication application display terminal used in advanced exhibition hall or live broadcast hall. It is a new high-tech product for 5G Cloud applications. It is composed of cloud algorithm, intelligent recognition, multimedia G + G capacitive touch, induction program, three-dimensional model and UI interface.
Through the host cloud system of the central console, combined with the HD LCD as the auxiliary device, the MR virtual and reality interactive display application can be realized. In this way, 5G new applications can be created to continuously meet people's cloud perspective experience and enjoy the feast of rich cloud video perspectives.
Key Features：
43'' Intel core i5 6th 6400U, 8G DDR4 Ram, 120G SSD ,Support Windows10 Pro+
600W Power Supply
2xUSB 2.0
1x HD-MI
WiFi 802.11(a/b/g/n/ac) Frequency 2.4G
Touch Key(Instruction Board)
Dual channel, stereo surround power amplifier system,2*2W Speaker,20Hz~20KHz
55'' Full HD 4K 3840*2160,Smart LCD Monitor
2xUSB 2.0
1x HDMI
WiFi 802.11(a/b/g/n/ac) Frequency 2.4G
Built-in self scan function,span:5~~255s
OSD can name,every port can set pass word,self-scan,skip scan and series functions
| Appliances | |
|
Can be applied to MR video,Cloud computing realizes the interaction between virtual and real environment Can be applied to military,industrial,transportation,communication and other MR vide fields. |
|
| Specifications: | |
| Structure： | Height:27U Kiosk Terminal |
| Color of the enclosure： | Black |
| Installation Dimension： | 990*590*1200mm*mm(L*W*H) |
| Environment: | |
| Storage environment： | Temp:-20~60º /Relative humidity:5%~95% |
| Working Ennvoronment： | Temp:0~45º / Relative humidity:5%~85% |
| LCD panel | |
| Panel type： | TFT--LCD |
| Size： | 55'' aspect ratio: 16：9 |
| Brightness： | 350 |
| Resolution： | 3840*2160 |
| Contrast ratio： | 1500:01:00 |
| Colors： | 16.7M |
| Brand： | Hengstar |
| Pixel pitch： | 0.315*0.315mm |
| Viewing angel： | H:178º，V:178º |
| Display mode： | Normally White |
| Overall dimension： | 1306*778*75mm (W*H*D) |
| Active display area： | 1209.6*680.4mm |
| Power | |
| Power consomption： | 65w |
| Input voltage： | 220V AC, 12V-5A |
| Signal interface： | V-By-One |
| Backlight： | Support OSD control |
| Brightness Control | Response time 8MS |
| Backlight life | 500,000Hours |
| External device: | |
| Windows System： | 1、10 point G+G Capacitive touch screen |
| 2、Windows 10 Pro+ | |
| 3、Interface:USB/HDMI | |
| 4、working life>10,000,000 times | |
| Current output： | 6A |
| Power output： | 600W |
| Frequency： | 47~63HZ |
| Protections: | |
| Power protection： | Built-in over voltage,over current and short circuit protection |
| MTBF： | 120，000 hours |
| Certificate： | UL/CSA/TUV/CE/3C |
| Compatible operating system： | Windows10 Pro+ |
Item parameters
METAL MESH SENSO
(Touch sensor product technical parameters)
Technical principle
Double-layer bridge projection capacitive technology, wire mesh matrix replaces ITO layer, special graphics replace traditional graphics.
Product Series
MM110
Touch points
≤10 point
Panel Size
55 inch
Touch deviation
≤2mm
Number of sensors
2784 pcs
Reporting rate
80-120point/ms
Power consumption
0.5W-2W
Drive Type
Free Drive
Arm Reject
Support
Support customization
Irregular size, irregular tail
Film thickness ≤100um
≤100um
Light transmittance
93% or more
Supply voltage
5V USB
Transmission method
USB2.0, USB3.0; I2C
Transmission distance
≤5m (plus USB signal amplifier, etc.)
Safety distance
2mm (refers to the distance between the LCD screen and the film)
Ambient temperature
-20°C to +70°C
Ambient light
full angle, anti-glare
Touch support
Click, drag, zoom in, zoom out, rotate
Sensing distance
≤8mm
Calibration method
System comes with calibration
Program type
Andriod①, Linux②, Windows7/8/8.1 (32 bit / 64 bit) ③
Program level
Standard HID-USB device
Technical certification
EN 55022:2010/AC:2011,EN 55024:2010 IEC62321:2008
