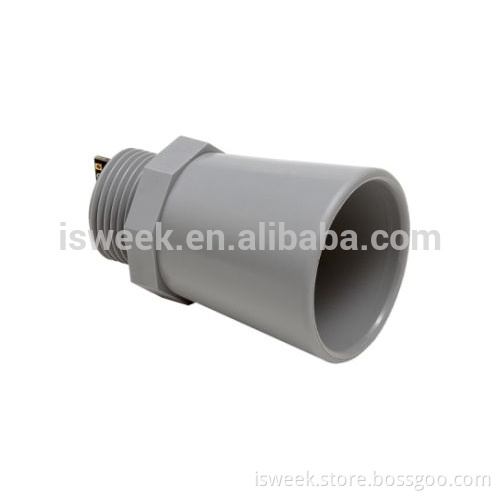

High Resolution and PrecisionHRXL-MaxSonar- WR MB7360-MB7380 Ultrasonic sensor component module

 High Resolution and PrecisionHRXL-MaxSonar- WR MB7360-MB7380  Ultrasonic sensor component module          Description:
TThe HRXL-MaxSonar-WR sensor line is a cost-effective solution for applications requiring precision range-finding, low-voltage operation, space saving, low-cost, and IP67 rating for weather resistance. The HRXL-MaxSonar-WR sensor line provides high accuracy and high resolution ultrasonic proximity detection and ranging in air.   This sensor line features 1-mm resolution, target-size and operating-voltage compensation for improved accuracy, superior rejection of outside noise sources, internal speed-of-sound temperature compensation and optional external speed-of-sound temperature compensation. The HRXL-MaxSonar-WR/WRC models are available in 5-meter or 10-meter models.   This ultrasonic sensor detects objects from 1-mm and ranges to objects from 30-cm* to maximum range. Objects closer than 30-cm* are typically reported as 30-cm*. The interface output formats are pulse width, analog voltage, and digital serial in either RS232 (MB7360 series) or TTL (MB7380 series). Factory calibration is standard. *For select sensors this distance is 50-cm, refer to pages 4 and 5.   HRXL-MaxSonar-WR/WRT Beam Pattern:   MB7360-MB7380 Features and Benefits: • Factory calibrated beam width
• Low operating voltages from 2.7V to 5.5V
• All range outputs are active simultaneously
• High acoustic sensitivity   Applications and Uses:
•  Autonomous Navigation
• Robot Ranging Sensor
• Bin Level Measurement
• Tank Level Measurement   Benefits: •   Acoustic and electrical noise  resistance   •  Reliable and stable range data   •  Robust, low cost IP67 standard  sensor   •  Narrow beam characteristics   •  Very low power excellent for battery  based systems   •  Ranging can be triggered externally  or internally   •  Sensor reports the range reading  directly, frees up user processor   •  Easy hole mounting or mating with  standard electrical fittings •  Filtering allows very reliable  operation in most environments   Easy to Use Component Module:  • Gracefully handles other ultrasonic sensors • Stable and reliable range readings and excellent noise rejection make the sensor easy to use for    most users • Easy to use interface with distance provided in a variety of outputs • Target size compensation provides greater consistency and accuracy • Sensor automatically handles acoustic noise • Calibrated sensor eliminates most sensor to sensor variations :                         Welcome to your inquiry !
