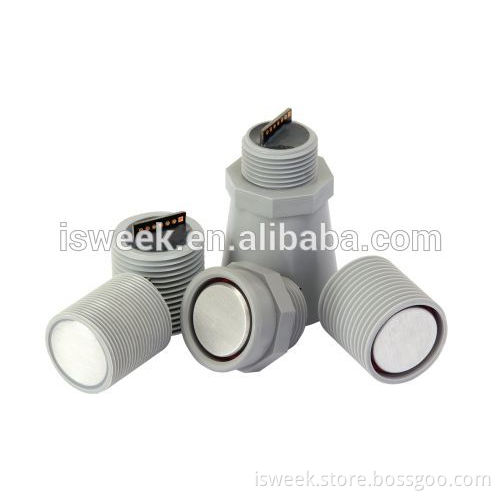

    The weather resistant HRXL-MaxSonar-WR is a rugged, ultrasonic sensor component module. This outdoor sensor provides very short- to long-distance detection and ranging in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4-inch PVC pipe fittings.    High-output, acoustic power, combined with continuously variable gain, real-time background automatic calibration, real-time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The HRXL-MaxSonar-WRsensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.   MB7380 is the TTL version of this sensor.
MB7366 is the 10 meter version of this sensor.   Robot Ranging Sensor Ultrasonic Rangefinders Ultrasonic sensordetails         Product Specifications     Resolution of 1-mm 7.5Hz read rate Internal temperature compensation 42kHz ultrasonic sensor measures distance to objects RoHS Compliant Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width Virtually no sensor dead zone, objects closer than 30cm typically range as 30cm Operates from 2.7-5.5V Low 2.9mA average current requirement Small, light weight module Designed for easy integration into your project or product Operational temperature -40°C to +65°C (-40°F to +149°F) Real-time automatic calibration (voltage, humidity, and ambient noise) Firmware filtering for excellent noise tolerance and clutter rejection Weather resistant (IP67), optional chemical resistant F-Option Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight) Long, narrow detection zone RS232 Serial Output     Features and Benefits

• Factory calibrated beam width
• Low operating voltages from 2.7V to 5.5V
• All range outputs are active simultaneously
• High acoustic sensitivity
  MB7360 Applications & Uses
• Autonomous Navigation
• Robot Ranging Sensor
• Bin Level Measurement
• Tank Level Measurement
