SiC UV Photodetector For UV hardening control Application

SiC UV Photodetector For UV hardening control Application   Properties of the TOCON_ABC10

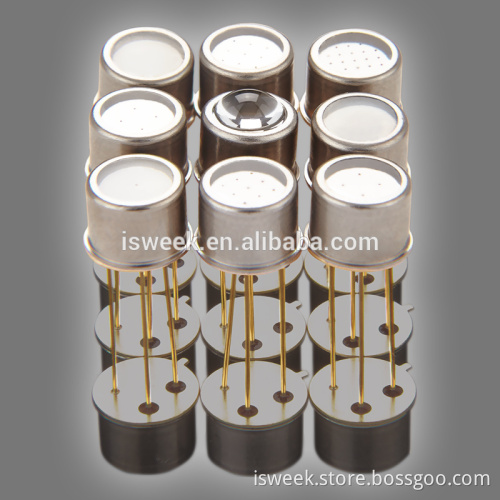

• Broadband SiC based UV photodetector in TO5 housing with attenuator
• 0 … 5 V voltage output
• peak wavelength at 290 nm
• max. radiation (saturation limit) at peak is 18 W/cm2,minimum radiation (resolution limit) is 1,8 mW/cm2
• Applications: UV hardening control and other very high UV radiation sources
  What is a TOCON?
A TOCON is a 5 Volt powered UV photodetector with integrated amplifier converting UV radiation into a 0 … 5V voltage output. The Vout pin of the TOCON can be directly connected to a controller, a voltmeter or any other data analyzing device with voltage input. Highly modern electronic components and a hermetically sealed metal housing with UV glass window eliminates noise caused by parasitic resistance paths inside the package or EMI. A TOCON is a perfect solution for each industrial UV sensing application starting from flame detection at pW/cm2 level up to UV curing lamp control at W/cm2 level. This thirteen orders of magnitude range is covered by ten different TOCONs that differ by their sensitivity. The TOCONs are produced as UV broadband sensors or with filters for selective measurement.
  SiC UV Photodetector For UV hardening control Application details:
