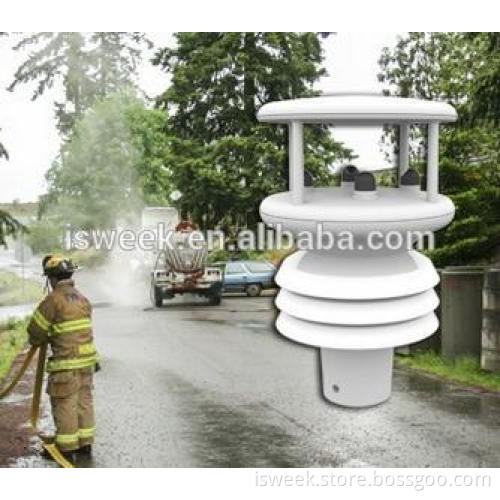

All-in-one multi-parameter weather sensor with an internal compass and GPS

All-in-one multi-parameter weather sensor with an internal compass and GPS
Innovative Weather Monitoring
Magellan MX Weather Station System Diagram
Magellan MX500 all-in-one sensor configuration
Especially ideal for mobile installations, Magellan MX Weather Stations combine the convenience of an all-in-one multi-parameter weather sensor with an internal compass and GPS.   Four different models offer sensor options including:
• Ultrasonic wind speed and direction measurement
• A combined temperature, pressure, humidity instrument mounted inside three double louvered, naturally aspirated radiation shields
• Optical rain gauge provides measurements based on the size and number of drops
MX600: rain gauge, ultrasonic wind speed and direction, temperature, relative humidity, air pressure, compass, GPS
MX500: ultrasonic wind speed and direction, pressure, temperature, relative humidity,
compass, GPS
MX300: pressure, temperature, relative humidity (no compass or GPS)
MX200: ultrasonic wind speed and direction only, compass, GPS
  Magellan MX Weather Stations Feature
• Weather-protected sensor unit designed for maximum portability and utility
• GPS for compensated wind speed
• Automatic self-alignment of wind direction using internal compass
• No mechanical components means virtually no maintenance
• Low power consumption – ideal for battery or solar-powered installations
• One-year warranty
  All-in-one Sensor Module with multiple sensor configurations

Model	MX600	MX500	MX300	MX200
Wind speed and direction	X	X		X
Air Pressure	X	X	X
Temperature	X	X	X
Relative Humidity	X	X	X
Rainfall	X
Compass	X	X		X
GPS	X	X		X

  Magellan MX Weather Monitoring System Diagram Sensor Specifications
SENSOR SPECIFICATIONS Temperature
Range: -40 to +70°C (-40 to +185°F)
Accuracy: ±0.3°C (20°C);
±0.54°F (68°F)
Resolution: 0.1°C (0.18°F)
Units: °C, °F
Barometric Pressure
Range: 8.85 – 32.48 inHg (300 - 1100 hPa)
Accuracy: ±0.015 inHg (±0.5 hPa) @ 77°F
(25°C)
Resolution: 0.003 inHg (0.1 hPa)
Units Available: kPa, hPa, mbar, inHg
Wind Speed
Range: 0-134mph (0-60 m/s)
Accuracy: ±3% 0.02 mph to 90 mph (±3%
0.01m/s to 40 m/s), ±5% above 90 mph and
up to 134
Resolution: 0.02 mph (0.1 m/s)
Units Available: knots, mph, km/hr, m/s
Wind Direction
Range: 0 to 359°
Accuracy: ± 3° 0.02 mph to 90 mph (0.01 m/s
to 40 m/s), ±5° above 90 mph and up to 134
mph (40 m/s and up to 60 m/s)
Resolution: 1.0°
Relative Humidity
Range: 0 to 100%
Accuracy: ± 2% @ 68°F (10%-90% RH)
Resolution: 1.0%
Precipitation
Accuracy: ±2% at <6 inches/hour
Resolution: (0.007in/tip) (0.2mm/tip)
Units Available: mm, inches
Compass
Measurement Range: 0-359°
Resolution: 1°
GPS
Horizontal Position Accuracy: Less than 2.5M
Circular Error Probability
Accuracy: Longitude and Latitude report to 6
decimal places
