Hall Effect Digital Position Sensor Price

Hall Effect Digital Position Sensor Price

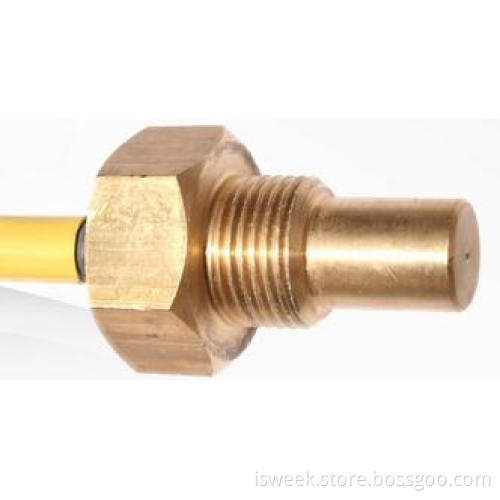

Description Brassed housed position sensors with thermally balanced integrated circuit over full temperature range. The negative compensation slope is optimised to match the negative temperature coefficient of lower cost magnets.
Band gap regulation provides extremely stable operation over the supply voltage range
  Features
 3.8 to 30VDC
 Digital current sinking output
 Quad-Hall design virtually eliminates mechanical stress effects
 Temperature compensated magnetic
 High output current capability, 50mA absolute maximum
 Operate and release points symmetrical around zero gauss
 Operating temperature range –40 to +150℃
Note:Interruption of power to a latching device may cause the output to change state when power is restored. If a magnetic field of sufficient strength is present, the sensor will be in the condition dictated by the magnetic field Typical Applications
 Camshaft and crankshaft speed and position
 Sprocket speed
 Chain link conveyor speed and distance
 Stop motion detector   Hall Effect Digital Position Sensor Price
