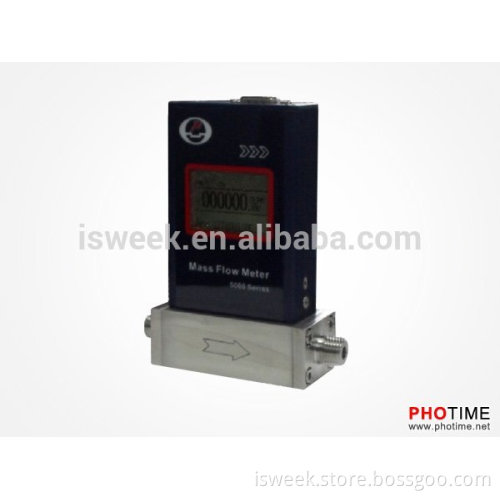

1.5 MPa Working Condition LCD Display Small Pipe Flow Monitoring Flow Meter

1.5 MPa Working Condition LCD Display Small Pipe Flow Monitoring Flow Meter              MF5000 series mass flow meters are specially designed for small pipe flow monitoring and  feature an extremely low pressure loss compared to the traditional by-pass thermal mass flow
meters in this application scope. The accuracy of the meters are generally ±(1.5+0.5FS)% or
better depending on the requests.  The meters can work at an environment of -20 to 60°C
and pressure up to 1.5 MPa.  Applications include semiconductor gas process monitoring and
control, hospital oxygen gas monitoring, etc.

Features and Applications
- Highly sensitive, measuring as low as 8 mm/sec, and as high as 65 m/sec with a single assembly
- Directly sense mass flow using thermal mass flow principle
- Proprietary MEMS sensor package design for better reliability
- Standard 12 ~ 24 Vdc power supply
- Low pressure loss forreducing energy cost
- Industrial standard Modbus protocol for easy networking and remote control     3.Mechanical Dimensions     4.Specifications     5.Product Selection
