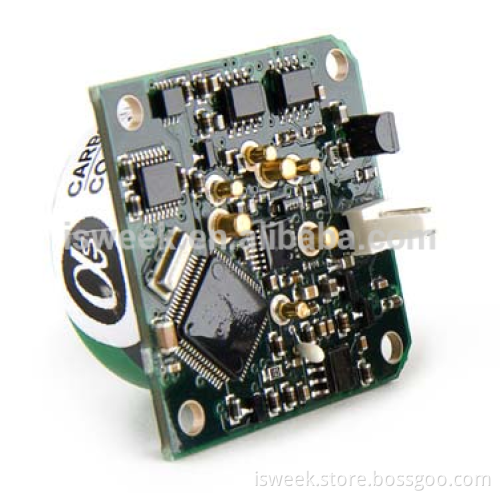

Hydrogen Chloride Sensor HCL Gas Sensor with 4-20mA Digital Board 0-100ppm HCL-B1+Board

Hydrogen Chloride Sensor HCL Gas Sensor with 4-20mA Digital Board 0-100ppm HCL-B1+Board   Alphasense 4-20mA digital transmitters offer the following
features:
Factory calibration, custom-set for immediate use
Digital zero, sensitivity and temperature compensation
Digital and 4-20mA output
Biased or unbiased operation
Calibration and range change   Alphasense 4-20mA digital transmitter boards provide a cost effective way for Original Equipment Manufacturers
to include 4-20mA gas sensor transmitters for fixed installation systems. The range of sensors are shown in
Table 1. Transmitters are supplied with pre-calibrated sensors.
The 4-20 mA output signal performance is as shown on individual sensor data sheets. Calibration and digital
interface communication use the 2-wire power supply (HART-type communications).
Optional fitting kit and connector/leads are available on request (Fig 2)           Contact :
