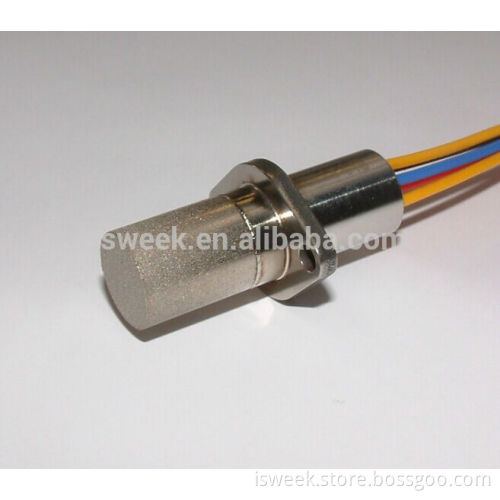

Zirconium dioxide Oxygen Sensor O2 Sensor for Aircraft and Airplane O2S-FR-T5

        Zirconium dioxide Oxygen Sensor O2 Sensor for Aircraft and Airplane                                                                Model Number : O2S-FR-T5                                                                             FEATURES
• Oxygen pressure range 2 mbar - 3bar
• Zirconium dioxide (ZrO2) sensing elements
• Non-consumption technology
• Integral heating element
• No need for temperature stabilisation
• No reference gas required
• High accuracy
• Linear output signal
• Operates with external interface boards   SPECIFICATIONS
Heater Voltage*
Porous Cap (15mm) 4.35VDC ± 0.1VDC (1.85A)
Stand by 2VDC (0.85A)
Pump resistance @ 700°C** < 6kΩ
Permissible gas temperature -100 to 250°C
Gas flow rate 0 to 10 m/s
Repetitive permissible acceleration 5 g
Incidental permissible acceleration 30 g         Contact :
