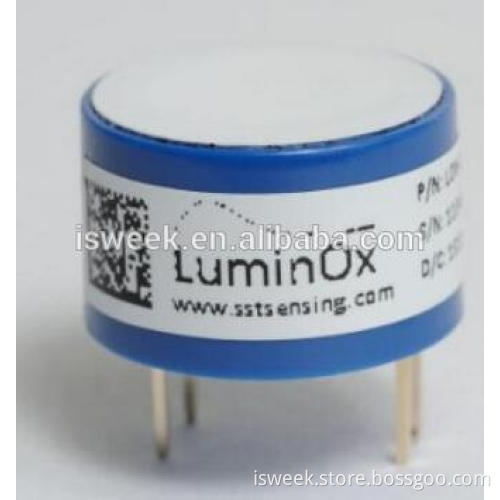

Factory Calibrated Fluorescence-based Optical Oxygen Sensors LOX-02

Factory Calibrated Fluorescence-based Optical Oxygen Sensors LOX-02 Description The LuminOx Family is a range of factory calibrated optical sensors which measure ambient O2levels using the principle of fluorescence quenching by oxygen. Our unique patented process allows us to produce an oxygen sensor that benefits from low power, traditionally associated with electrochemical sensing devices, while providing a much longer lifetime due to the non-depleting sensing principle. Low drift RoHS compliant Extended temperature range compared to electrochemical sensing devices Low in cost Factory calibrated Measures temperature and Pressure (if selected) Small and compact Maintenance free LuminOx unlike other sensor technologies is stable and robust, it is RoHS compliant as it does not contain lead or any other hazardous materials and has negligible cross sensitivity. LuminOx can be purchased as a single optical sensor, or as part as an evaluation kit which includes the LuminOx Sensor Evaluation Interface Board, which was designed to allow customers to easily evaluate the sensor with minimum effort or design work. Applications Typical applications for the LuminOx Optical Oxygen Sensor are; Oxygen detection Portable equipment Breathing apparatus Inerting Medical Lab equipment Agriculture Incubation Fore prevention Flue gas in condensing boilers Factory Calibrated Fluorescence-based Optical Oxygen Sensors LOX-02 Specifications

Operating Ranges	0-25%
Response Time	<15s
Lifetime	>5 years
Sensing Method	Fluorescence quenching by oxygen
Temperature Range	-30 to +60°c
