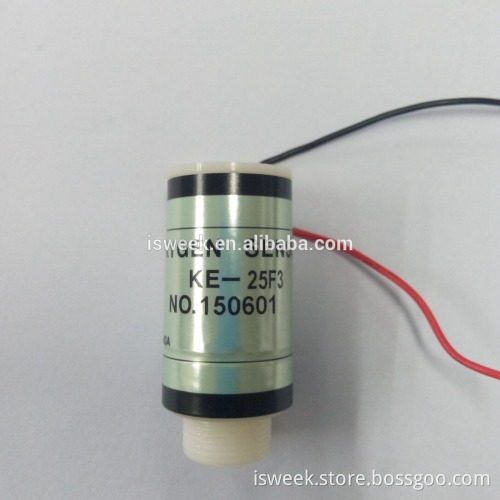

Galvanic Cell Type Oxygen Sensor KE-25F3 In Stock

Galvanic Cell Type Oxygen Sensor KE-25F3 In Stock

KE-25	5 years long life
KE-50	10 years long ilfe
KE-25-F3	screw-thread type, 5 years long life

  Description:
Based on the fuel cell and lead acid battery technologies(eletrochemical principle); The sensor life is very long(5 years and 10 years,depending on the environment); Measurement range by 0-100% O2;


Specifications:
1) range:0 ~ 100% O2
2) accuracy : KE-25 +/-1% FS; KE-50 +/-2% FS
3) temperature:5-40°C
4) response time:KE-25 14+/-2S; KE-50 60+/-5S
5) initial output voltage under standard test conditions:
KE-25 10-15.5mv ; KE-50 47 ~65mv

Features:
1) Long life :KE-25 - 5 years / KE-50 - 10 years in ambient air
2) Virtually no influence from CO2, CO, H2S, NOx, H2
3) Low cost; Stable output signal
4) Operates in normal ambient temperatures
5) No external power supply required for sensor operation
6) No warmup time is required

Applications:
Medical - Anesthetic instruments, respirators, oxygen-enrichers;
Biotechnology - Oxygen incubators;
Food industry - Refrigeration, greenhouses;
Safety - Air conditioners, oxygen detectors, fire detectors    Galvanic Cell Type Oxygen Sensor KE-25F3 In Stock specifications
