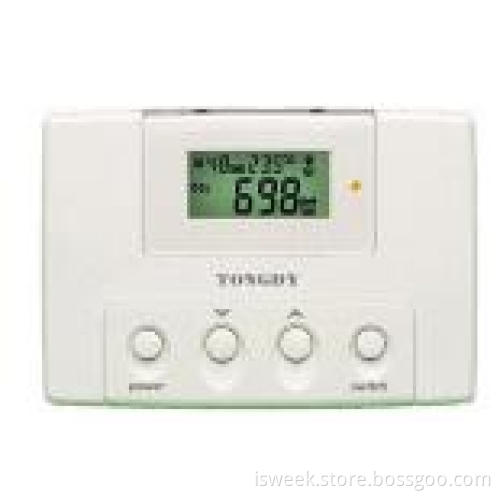

RS485 output CO2 Monitor with LCD Display

RS485 output CO2 Monitor with LCD Display Model Number:F2000IAQ-CO2-3003D Features
Especially designed for agriculture equipments such as greenhouses, food and vegetable torages. Real-time detecting CO2 level, temperature and humidity with the local programmable control.
 Wall mounting, LCD display
 Carbon dioxide sensor, temperature sensor and humidity sensor are internal. The three values can
be apart set.
 Non-Dispersive Infrared Detector (NDIR) CO2 sensor, more than 10 years lifetime
 CO2 range: 0~5000ppm / 0~20000ppm / 0~50000ppm
 Special ABC Logic with patented Self Calibration Algorithm makes the CO2 sensor used up to more
than 10 years   Application
F2000IAQ-CO2 -3003D multiple controller is used to control CO2 level, temperature and humidity in order to offer right environment for plants growth or for foods storage.
It provides three dry contact outputs to control a carbon dioxide generator and a ventilator or other
temperature/humidity equipments. It can provide RS485 communication with independent address to PC or other control systems.
It will be used below application:
1. Greenhouses, which include vegetable planting houses and flowers planting houses.
2. Modern hydroponics gardens
3. Other relevant field of agriculture
4. Keep food and vegetable on fresh
Specifications   Models Wiring Diagrams
