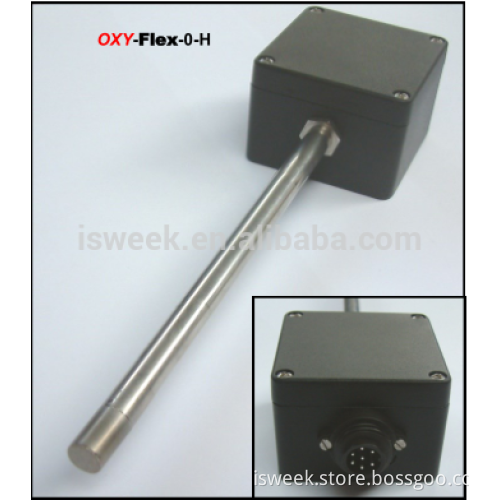

OXY- Flex Oxygen Analyser High accuracy linear output

OXY- Flex Oxygen Analyser High accuracy linear output   FEATURES:
• High accuracy linear output
• Configurable outputs: 4-20mA and 0-10VDC or RS232 comms interface • Selectable output measurement ranges: Standard ranges of 0-25% O2 and 0-100% O2 or fully adjustable via RS232 when configured in 0-100% O2 mode
• Externally triggered automatic or manual calibration • Can be calibrated in normal air (20.7% O2) or in any other known O2 concentration
• monitoring of the O2 sensor pump cycle for diagnostic purposes
• Selectable output filtering allows adaptive, fast and dynamic or slow and stable output   SPECIFICATIONS:
Maximum ratings
Supply voltage : 24VDC ± 10%
Current consumption : 500mA max @ 24VDC
4-20mA: Load 100 to 600Ω
Temperature limits (electronics enclosure) Storage : -10 to 85'C
Operating : -10 to 85'C
Temperature limits (permissible gas temperature at sensor tip) Operating (Standard Temp) : -100 to 250'C
                 (High Temp)      :   -100 to 400'C
Gas flow rate : 0 to 10 m/s
Weight : <450g
Incidental permissible acceleration : 30g
Repetitive permissible acceleration : 5g
Sealing Rating : IP65   APPLICATIONS:
•  Combustion control including oil, gas and biomass boiler applications
•  Composting •  Laboratory & building air quality monitoring including confined space personnel safety
•  Industrial process control i.e. gas mixing for welding and steel making
•  Oxygen generation systems
•  Medical •  Scientific including respiratory studies of acommunity or an organism, plants and animals
•  Food and beverage packaging
•  Applications where low oxygen is key including fermentation, rust and corrosion prevention, inerting and purging OXY-Flex Oxygen Analyser                 Welcome to your inquiry  !
