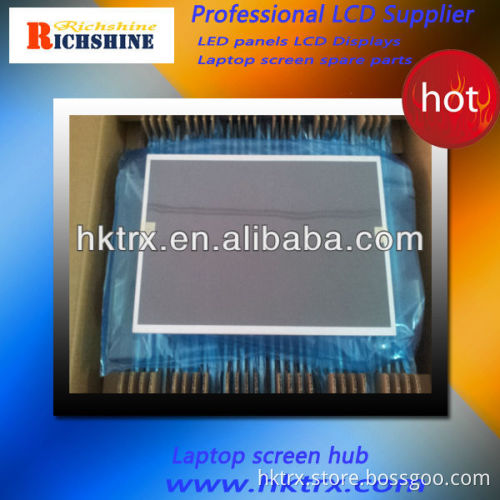

B125XW02 V0 12.5 inch 1366*768 LCD panel for laptop

Get Latest Price

Payment Type:: T/T

Min. Order:: 30 Piece/Pieces

Min. Order:: 30 Piece/Pieces

Delivery Time:: 7 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China (Mainland)
Supply Ability:	2000 Piece/Pieces per Day
Payment Type:	T/T

Product Description

Specifications Brand:AUO

Size:12.5 inch

Model:B125XW02 V0

Type :a-Si TFT-LCD

Resolution:1366*768

AUO B125XW02 V0 General Features

Panel Brand:	AUO
Panel Model:	B125WX02 V0
Panel Type:	a-Si TFT-LCD,Panel
Panel Size:	12.5 inch
Dot Resolution:	1366(RGB)*768(WXGA)
Display Mode:	TN,Normally White,Transmissive
Surface:	Antiglare,Hard coating(3H),Reflection4.3%(Typ.)
Brightness:	200 cd/m² (Typ.)
Contrast Ratio:	400:1(Typ.)(Transmissive)
Display Colors:	262K(6-bit)
Response Rime:	6/2(Typ.)(Tr/Td)(ms)
Viewing Angle:	45/45/15/35 (Typ.)(CR≥10)(L/R/U/D)
Frequency:	60Hz
Lamp Type:	WLED
Signal Interface:	LVDS(1 ch,6-bit)
Input Voltage:	3.3V(Typ.)
RoHS:	√ RoHS

Shippment We use flexible means of transportation to effect shippment,you can contact us first,and we will figure out the best way to carry the cargos to your final destination.
