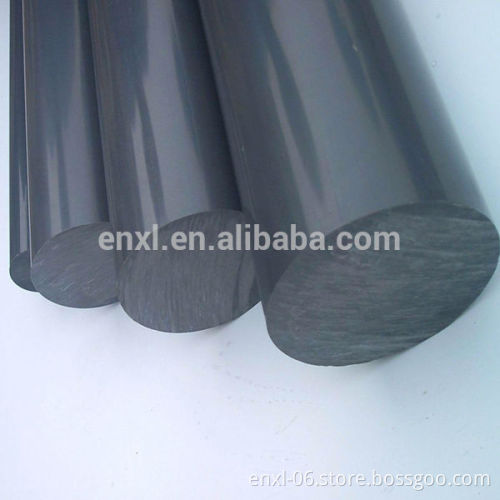

High Quality Grey Solid PVC ROD

Specifications PVC ROD

1. 100% brand Virgin material

2. Beautiful looks with smooth & glossy surface

3. Low Density: 1.4-1.5

4. D 8--200 mm

PVC ROD   Dia. range: 8 -- 200 mm Length: 1000 mm; 2000 mm Color: dark grey, light grey Density: 1.4 -- 1.5 Model: PVC-U solid PVC ROD with beautiful surface.   Advantages:  1,High mechanical strength, high hardness   2,Good electrical insulation   3,Excellent chemical and corrosion resistance   4,Showcase quality surface   5,Easy to fabricate, weld or process  6,Accurate to dimensional tolerances  7,Color is not easy to fade away  8,Good printing and welding  9,Flexibility adjustable

Property	Units	Value	ASTM Method
Physical
Density	g/cm3	1.42	D 792
Water Absorption	%	0.06	D 570
Rockwell Hardness	R Scale	115	D 785
Shore Durometer	D	89	D 2240
Cell Class	—	12454-B	1784
Mechanical
Tensile Modulus	psi	411,000	D 638
Yield Strength	psi	7,500	D 638
Flexural Modulus	psi	481,000	D 790
Yield Strength	psi	12,800	D 790
Izod Impact	ft-lb/in	1.0	D 256
Thermal
Vicat Softening Point	°C/°F	83/181	D 1525
Heat Deflection Temperature	°C/°F	82/179	D 648
Heat Deflection Temperature	°C/°F	80/176	D 648
Linear Coefficient of Expansion	in/in/°C	5.8 × 10-5	D 696
Linear Coefficient of Expansion	in/in/°F	3.2 × 10-5	D 696
Flammability Rating
Flammability	—	Self-Extinguishing	D 635
Flammability	—	0	UL 94V
Flame Spread	—	15	E 84
Chemical
Chemical Resistance	—	Class B	D 1784
Electrical
Electrical Volume Resistivity	Ohm/cm	5.4 × 1015	D 257
Dielectric Constant	60 Hz	3.19	D 150
