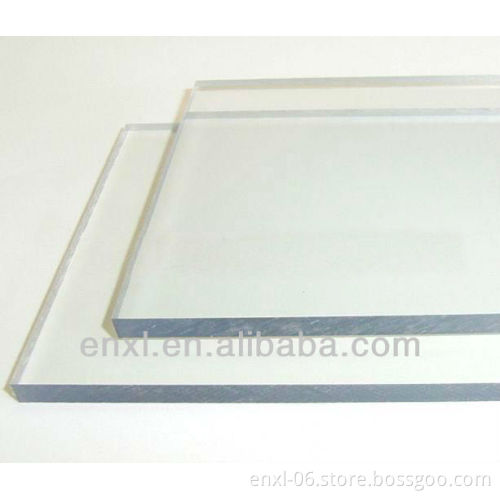

Antistatic Acrylic Plate

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications Antistatic Acrylic Plate

Vinyl chloride of hard quality

Excellent Abrasion Resistance

Static dissipative Function:10^6-10^8

Physical Characteristic

Field	Items	ASTM	Test conditions	Unit	PMMA
Basic optical	Specific gravity	D792			1.19
	Total light transmittance	D1003	5mm	%	88
	Haze	D1003		%	0.4
Mechanical	Tensile strength at brake	D638		Mpa	70
	Elongation at brake	D638		%	2.5
	Flexural strength	D790	1/4"rod	Mpa	90
	Impact strength(charpy)	D256	23°C, 1/8"notch	KJ/m²	1.6
	Rockwell hardness	D785	M scale		100
Thermal	Deflection temp (under loading)	D648	1.82MPa	°C	95
	Thermal expansion coefficient	D696		/°C	6.0x10^-5
	Thermal cycle		(60°Cx 6hours)x10cycles		No change
Electrical	Surface resistivity	D257		Ohm/m²	10⁶-10⁸
Electrical	Volume resistivity	D257		Ohm-cm	>10¹⁵
Chemical resistance (#1)	Acetone		Evaluation		.
	IPA		after		.
	Hydrochloric acid(36%)		1 hr		.
	Nitric acid(60%)		1 hr		.
	Sulfuric acid(97%)		Dropping		.
Miscellaneous	Water absorption	D570	23°C*50%RH,24 hrs	%	0.3
	Pencil hardness	D3363			4H
	Steel wool test		#0000,200g,10times		No scratched
	Combustibility	D635			Flammable
	UL standard	UL 94			HB

The above information is typical values only and not for warranty purpose
