1/2" Plastic Water Flow Switch Magnetic flow switch

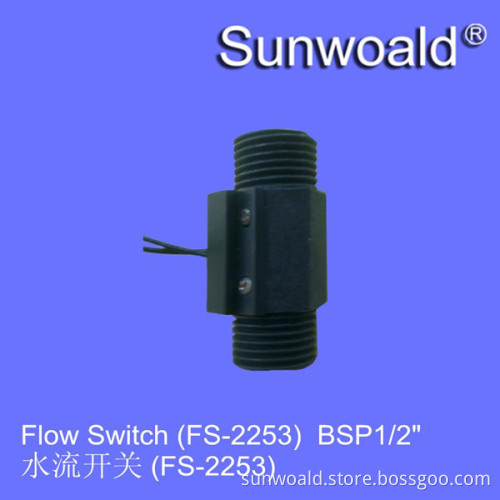

FS-2253  Plastic Water Magnetic  Flow Switch  1/2" DN15
    When it comes to flow switch, our product is by far tthe most technically advanced and   comprehensive, well known for their reliability and accuracy in the service.       Electrical Characteristic: Contact form:A (Normally Open) Max Contact Rating: 10W Max Switch Voltage: 100V Max Switch Current: 0.5A Max Contact Resistance: 100m ohm Min insulation Resistance: 100M ohm Electrical Life: 1x107  (5Vdc, 10mA)   Technical Characteristic: Start-up Volume(min): 0.5L/min Operate Volume(Max): 5L/min Standard Operate Pressure: 0.01~0.4Mpa Suffering Pressure: 1.5Mpa Operate Temperature: 0~+100°C Mounting Position: Discretional installation Body Material: PA66+30%Glass

Switch Characteristic	Physical Characteristic
1. Contact Form: A (Normally Open)	1. Start-up Volume(min): 0.5L/min
2. Max Contact Rating: 10W	2. Operate Volume(Max): 5L/min
3. Max Switch Voltage: 100V	3. Standard Operate Pressure: 0.01~0.4Mpa
4. Max Switch Current:  0.5A	4. Suffering Pressure: 1.5Mpa
5. Max Contact Resistance: 100m ohm	5. Operate Temperature: 0~+100°C
6. Min Insulation Resistance: 100M ohm	6.Mounting Position: Discretional installation
7. Electrical Life: 1x107  (5Vdc, 10mA)	7. Body Material: PA66+30%Glass

                  Packaging & Shipping   Inner Packing : tie 5 pcs up in a bundle,              25pcs in to a packet plastic bag Master Packing : 100~300 pcs / Carton. Or is according to the order quantity make packing.               Our Services     1. On time delivery : Delivery within 5 days for sample, Order less than 500pcs in 5-10 days. Bulk order working days 10~15 days.   2. Your inquiry and online question will be quick response for you within 24 hours, will not let you wait long time. 3. Well-trained and experienced staffs and engineer to answer all your inquires.   4. After-sale tracking service for all of our clients.   5. OEM is available, even small quantities we also support , mixed bulk order are also welcome. 6. New products development: we already cooperate to develop some project from Asia countries, European countries, United state, Brazil , …   7. We cooperate with Alibaba’s logistic and Export issue company, Which you can 100% surely don’t need worry about our business. 8.we have the trade assurance in Alibaba, order can be in Alibaba.com .   9. Payment : T/T, Western Union, Paypal, L/C , D/A 10. Delivery : by UPS, DHL, TNT, FEDEX, EMS, CHINA POST, Or your forwarder in China. Or freight collect by your account. 11. Warranty 1~3 Years, electronis using time 8 years. Which mean the flow sensor is becoming older with the main machine.   Before offer you the quotation, we need to know the following information: 1.Thread Connection size and flow rate Connection size will affect the price. And we are not sure if the connection can meet your request of flow rate; 2.Using Temperature and pressure. We can give you the suggestions of material accordingly. Maybe a cheaper one is enough. 3.Order Quantity. We will give you the discount according to the quantity. 4. Sample If you need sample, feel free to contact us below :                                                                     Company Information   About us : Shenzhen Sunwoald Electronics Co., Ltd. was established in 2006,    and is engaged in the development, production, sale and services of proximity switches, flow switches, door magnetic switches, magnetic reed relays and infrared sensors.
Our products are widely applied in home appliances, automobiles, machinery, electronics, communication equipment, metallurgy, power generation, shipbuilding, petrochemical, food, waste water/water purification processing, pharmaceutical, chemical, steel, mining, oil equipment, temperature monitoring, boilers, large air-conditioning and other industries. We can meet the demands of users in different environment. Our products have many kinds of specifications, we also accept customized orders, and we are pursuing perfect in every detail, relying on sophisticated technology.

   Excellent service system helps us respond quickly to customers. Single product can not bring our customers real benefits. Our company provides one-stop service. We have a new factory, advanced processing equipment, a modern design center, efficient technical service institutions and internationally advanced testing equipment. Our company has strict quality tracking and service management systems, and have gained the ISO9000 certificate in August, 2011.     Our company is committed to market development and promotion, till now, we have developed the North America, South America, the European Union, the Middle East, South Korea and Japan markets, our products are with excellent quality and competitive prices, they have gained good sales at home and abroad, we now the steady supplier of Unilever, Duravit, etc. famous 500 Top company in the world.     Based on the "excellent quality, competitive price, fast delivery, perfect service, customer satisfaction" policy and making full use of advanced technology and quality management, we have confidence in the areas of sensors.     Our company has developed many kinds of magnetic door contact switch, float level switch, water flow switch, magnetic susceptibility temperature switches, magnetic reed relays, optical sensor, the temperature sensor, and various types of foaming float, safety equipment and other products up to more than 100 types, and with the constant expansion of market at home and abroad, we will continuously introduce more and better products for different users in the future.

We are willing to work with all friends in the world and hand in hand to create a wonderful tomorrow.        ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------     Other flow switch and flow sensor for Choosing :                  FS-2253  Plastic Water Magnetic  Flow Switch FS-2253  Plastic Water Magnetic  Flow Switch FS-2253  Plastic Water Magnetic  Flow Switch FS-2253  Plastic Water Magnetic  Flow Switch FS-2253  Plastic Water Magnetic  Flow Switch
