Waterproof SAW Touch Screen

Specifications > Compliant with IEC IP65 standards ;

> 4096x4096 Resolution, USB or RS232 Interface

> Dustproof and Waterproof;

  USB/RS232 Water/Dust proof SAW touch screen panel Our Own Brand:   Professional (OEN/DOM) manufacturer of the touch screen in China over 8 years. Size can be customized Products Warranty up to 1 years 100% manufacture and promised that the price must be the best with the top quantity All of our products has passed the CE, FCC RoHs certification. Products Description:        Surface Acoustic Wave (SAW) touch screen uses ultrasonic waves that pass over the touchscreen panel. When the panel is touched, a portion of the wave is absorbed. This change in the ultrasonic waves registers the position of the touch event and sends this information to the controller for processing. Surface wave touchscreen panels can be damaged by outside elements. Contaminants on the surface can also interfere with the functionality of the touchscreen.
   Surface Acoustic Wave (SAW) touch screen is based on sending acoustic waves across a clear glass panel with a series of transducers and reflectors. When a finger touches the screen, the waves are absorbed, causing a touch event to be detected at that point. SAW touch screen technology is recommended for public information kiosks and other high traffic indoor environments. SAW touch screen > Can withstand more than 35000000 point
> 4096x4096 Resolution, USB or RS232 Interface
> Superior image clarity with high light transmission
> High accuracy and sensitivity
> Glass Material,Durability, deep scratch resistance and abrasion
> Finger, gloved hand and touch pen activation
> Sensitive and fast response
> Our products have passed CE, FCC, ROHS certification! Products Technical Specificate:

Interface Type:	USB or RS232
Resolution	4096x4096
Screen Ratio	4:3
Material	Glass
Certificates	CE, FCC, RoHS
Input method	Finger or touch pen
Position accuracy	2~5mm
Operating Voltage	DC ≤10V
Operating current	5~25mA
Response time	Less than 10ms
Touch action force	30~80g
Operating temperature	-10°C~60°C
Storage temperature	-40°C~70°C
Surface hardness	≥5H
Working environment	Under sunlight, indoor and outdoor
Transparency	≥90%
Isolation resistance	≥20MΩ DC 25V
The number of hits	≥35,000,000/point
Warranty	1 year
Support Systems	Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac

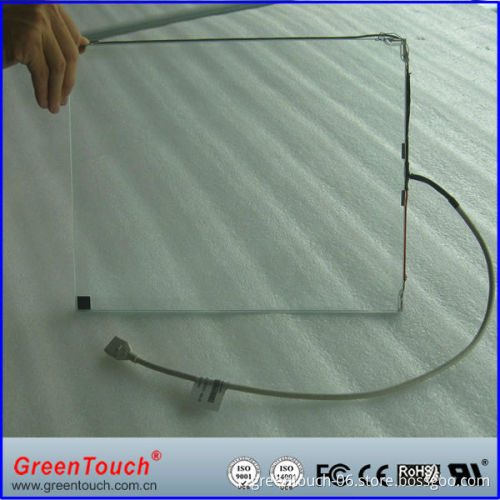

Products SIze List:   Products picture Show:
Kit of the Saw Touch Screen:
Certifications   Shipping   Note: DHL/UPS/Fedex Express usually take about 3 ~7working days to the destination, and it is about 5~10 work days by EMS or TNT, Hongkong post air mail and Hong post Air Parcel takes 7 to 30 days to ship to worldwide   1.we will sent the goods within 3 business days after the payment has been confirmed, if the payment is not available, your order will be close automatically   2. The buyer will responsible for any insurance, problems and damage which caused by shipping service such accidents, delays or other issues. besides the buyer should to be responsible for any tax and duty charged by their country, and the goods will be marked as gift or sample for your easy customs clearance and less charge ( if you want to declare the goods as other item name, or specify an value for custom, please inform us when making the order   Return and Warranty   1. All the goods are inspected before shipment, so if you are not satisfied with the purchase, you can exchange the items in one week and you must contact us within 24 hours of the replace of your purchase   2. The shipping and handing charge is not refundable and the customer should be responsible for all the charges of the returning and reshipping   3. All return items much be packed in its original conditions, including box and accessories, Men made defects are not guaranteed, such as broken, scratched and so on.   4. For any items, please send by EMS or your local post when sent back.   Feedback   1. Buyer's early confirmation will be highly appreciated after receiving the items.   2. Since your feedback is very important to our business's development, we sincerely invite you to leave positive feedback fro us I you are satisfied with our products and service, It'll just take your 1 minute, but this 1 minutes has the extremely vital significance to us.   What we can do:   1. All of our products have processed aging test before shipment and we guarantee to use our products safety.   2. Support imprinted your logo on products and let your logo shine anywhere.   3. OEM/ODM orders are warmly welcome.   Warranty and Return:   1. All products and accessories have been tested by 3 times before ship our.   2. All products have 1 year warranty, if there is no man-made problem, we will replace or repair for you freely   3. We own the best after-sale service, if any problems happen, our team will do our best to solve for customers.   Factory Show :
