21.5 inch Optical touch screen sent from the store

Specifications Optical touch screen technology

Optical touch screen is composed by two optical image capture sensor and reflective strip.

Shenzhen 21.5 inch Optical touch screen   Our own Brand:  Professional manufactuer of the touch products in China Over 8 years.     Products Descriptioin:   Optical touch screen is composed by two optical image capture sensor and reflective strip. When objects contact with glass or transparent material, the optical effect of the touch point will be changed since the optical changing. It will generate relative distance between touch point and sensor, thus computing out of the touch position .
   Optical touch screen technology uses multiple optical sensors to detect the touch point, which registers the touch just before physical contact with the screen. This means that users can apply zero or light touch to the screen to initiate a response, and any input device, such as a finger, gloved finger, pen, or stylus will work.   Optical touch screen   > High clarity of image CCD technology
> 32768x32768 Resolution
> USB Interfac,Water-proof and dust-proof
> High accuracy and sensitivity
> Over 60 millions multi touch
> Finger, gloved hand and touch pen activation
> Sensitive and fast response
> Our products have passed CE, FCC, ROHS certification!  Produt Specification

Model number	Ratio	Outline(mm)	Viewing Area(mm)	Active Area(mm)	Thickness(mm)
GT-OP-B21.5	16:9	493.8x295.4	489.2x273.6	476.6x268.1	8



Interface Type:	USB 2.0
Resolution	32768x32768
Screen Ratio	4:3
Linearity Error	1.5mm
Certificates	CE, FCC, RoHS
Material	Glass
Input method	Finger or touch pen
Response time	<10ms
Touch Intensity	Over 60 millions multi touch
Touch Accuracy	2MM(Over 90%Area)
Operation Voltage	DC +5V+/-5%
Touch action force	5g
Operating temperature	-20°C~70°C
Storage temperature	-40°C~85°C
Power Supply	USB, power ripple max.200mV rms
Working environment	Under sunlight, indoor and outdoor
Scan frequency	125HZ
Operating	90%
Appearance Color	Black
Output Format	Coordinate output
Warranty	1 year
Support Systems	Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac

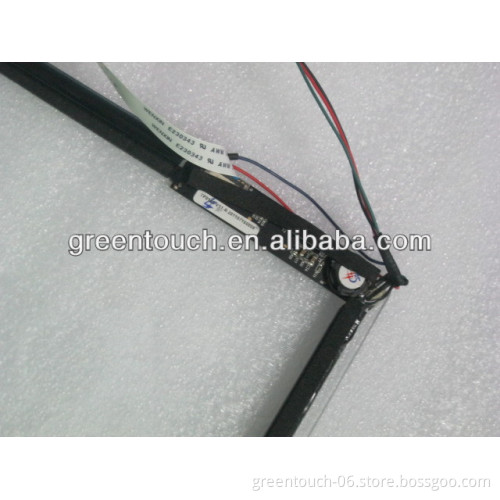

Products Detail Pictuers Showed:     Products Technical Drawing:      Factory Show :
