Industrial 15 inch Saw Touch Screen use for Open frame Monitor compatible with ELO

10.4 inch industrial level 6mm vandaproof SAW touch screen     Surface Acoustic Wave (SAW)Touch Screen(10.4’’-42”)   SAW touch screen description:           GreenTouch Surface Acoustic Wave (SAW) touch screen uses ultrasonic waves that pass over the touchscreen panel. When the panel is touched, a portion of the wave is absorbed. This change in the ultrasonic waves registers the position of the touch event and sends this information to the controller for processing. Surface wave touchscreen panels can be damaged by outside elements. Contaminants on the surface can also interfere with the functionality of the touchscreen.       GreenTouch Surface Acoustic Wave (SAW) touch screen is based on sending acoustic waves across a clear glass panel with a series of transducers and reflectors. When a finger touches the screen, the waves are absorbed, causing a touch event to be detected at that point. SAW touch screen technology is recommended for public information kiosks and other high traffic indoor environments.   SAW touch screen type:

Touch screen type	Touch screen size	Thickness of glass	Material
Standard SAW touch screen	10.4-42’’	3mm,4mm,6mm	Pure glass
Multi-touch SAW touch screen	10.4-24’’	3mm,4mm,6mm	Pure glass
Vandal-proof SAW touch screen	15”/17”/19’’ 4:3	4mm,6mm	Pure glass
Water-proof SAW touch screen	15”/17”/19’’ 4:3	3mm,4mm,6mm	Plastic frame
Vandal/Water-proof SAW touch screen	15”/17”/19’’ 4:3	4mm,6mm	Plastic frame
Anti-glare SAW touch screen	10.4”-42”	3mm,4mm,6mm	Pure glass
Dust-proof SAW touch screen	10.4”-24”	3mm,4mm,6mm	Aluminum frame
Vandal/Water/Glare/Dust-proof  SAW touch screen	15”/17”/19” 4:3	3mm,4mm,6mm	Aluminum frame

    SAW touch screen advantage: n high quality, high resolution and light transmittance n once calibrated, never drift n Z axis pressure recognition, only the intensity of the touch sensor to prevent misuse n long working life, not afraid of hard objects n short reaction time n compact, easy to install n Can be customized according to customer requirements Screen Size     SAW touch screen application: n Open frame touch monitor n Self-service kiosks n Vending and ticket sales n Electronic catalogs n Gaming, lottery, and amusement n Public pay phones n Multimedia marketing n Banking/financial transactions n Industrial control rooms n Computer-based training n And more       SAW touch screen specification:

Technology	surface acoustic wave technology
Dimension	10.4"-42"(can be selected)
Resolution	4096 x 4096 ,Z-axis 256
Material	electronic glass (anti-glare,anti-vandal,anti-water,anti-dust can be selected)
Sensor position	0.5mm (glass bevel,0.5mm above the surface)
Positioning accuracy	< 2mm
Transmittance	>92% /ASTM
Touch intensity	30g
Touch life time	> 50,000,000
Surface hardness	Mohs' 7
Multi touch	(single or fake 2points touch) can be selected
Operating Temperature	-10°C to +60°C
Storage Temperature	-20°C to +70°C
Humidity	10%-90% RH / 40°C
Work latitude	3800m
Full set	Connected line,double-adhesive tape,dust-proof line, touch screen,controller.
Certificate	CE, FCC, RoHS
Controller specification:
Controller type	Standard or ELO (can be selected)
Interface	USB or RS232 (can be selected)
Dimension	85mm×55mm×10mm
Working voltage	12V±1V or 5V±0.5V (can be selected)
working current	80MA
Maximum current	100MA
Reaction time	≤16ms
Operating Temperature	0-65℃
Humidity	10%-90%RH
Storage Temperature	-20℃-70℃
MTBF	> 500,000 hours
Operating system    (Support)	SetupX86:WindowsXP,WindowsXPE,Win7 32,Windows VISTA SetupX64: Win7 64 Linux(support Various versions):Ubunut/Redhat/FC/Suse etc Android:2.30,4.0 etc.((can use driver-free controller directly)) WinCE:WinCE 5.0/ WinCE 6.0
Controller of LED diagnostic features:
Flash Frequency	Function
The long light goes out after 5 seconds	The controller power-on self-test
Slow flashing	Normal operation, no touch
Fast flashing	Touch the state
Power-on	The touch screen not be found

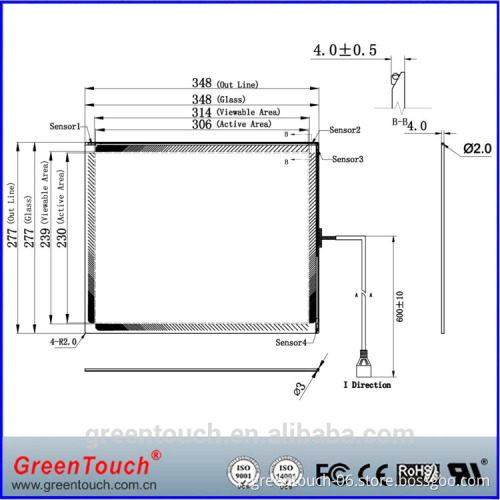

    SAW touch screen picturers show:                                 SAW Touch Screen Certification:       Delivery and Payment way :         Factory shown:   Related Products More Touch Products  you  may  interest: 32 inch interactive multi-touch  points touch foil / 42 inch infrared touch screen   17''-100'' smart Multi infrared Touch Screen overlay/ 55 inch infrared touch screen   15'' 4 wire resistive touch screen / 17 inch 4/5 resistive touch screen overlay panel    15/17/19 inch standard/waterproof / dustproof/ vandal-proof saw touch screen We support custom-made ,no minimum order,hope we can cooperate in the near future,thanks.
