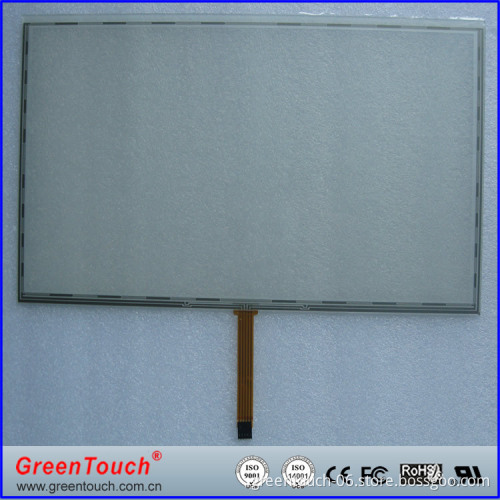

5 Wire Resistive Touch overlay screen , 23''resistive touch screen panel for home automation

Specifications resistive touch screen overlay

1.Sensitive to touch

2.CE,ROHS,FCC

3.Transpanrency>78%

4.Thin thickness,act quik

  Resistive touch screen overlay with USB or RS23 interface.
Our Brand:  Professional (OEM/DOM) Manufactuer in China over 8 years.We accept Neutral(No logo). OEM. ODE.     Size can be customized   Products Warranty up to 1 years   100% manufacture and promised that the price must be the best with the top quantity   All of our products has passed the CE, FCC RoHs certification.     Products Description:     5wrie resistive touch screen is a two-layer structure, two materials (film or glass) with ITO are attached with a gap between them so that the ITO layers are facing each other. Touch input will be made as the top layer is pressed down and the two ITO layers contact. There are insulators called spacing dots between the top and bottom ITO layers. These spacing dots prevent unintended contacts (inputs) of the ITO layers when not pressed.
    When the top ITO film is pressed and makes contact with the bottom glass, the contacted area will be detected via electrical conduction. The notable characteristic of 5wire resistive is that only the bottom glass has detecting function. Even if the top ITO film is damaged, the detecting function will not be affected (except for the damaged area).   5 wire Resistive touch screen > Can withstand more than 35,000,000 point
> 4096x4096 Resolution
> USB or RS232 Interface
> High accuracy and sensitivity
> Glass + Film Material
> Finger, gloved hand and touch pen activation
> Adapt to adverse environmental conditions such as liquid splashes and wash down
> Our products have passed CE, FCC, ROHS certification!      Products Characters: Industry control system Indoor/outdoor kiosks Advertisement merchine Automobile DVD navigation Medical and healthcare kiosks ATM PC GPS Self service termal Gas station   Technical specification:

Interface Type:	USB or RS232
Resolution	4096x4096
Screen Ratio	16:9
Material	Glass + Film
Certificates	CE, FCC, RoHS
Input method	Finger or touch pen
Position accuracy	2~5mm
Operating Voltage	DC ≤ 10V
Operating current	5~25mA
Response time	Less than 10ms
Touch action force	20~100g
Operating temperature	-10°C~60°C
Storage temperature	-20°C~70°C
Surface hardness	3H
Working environment	Under sunlight, indoor and outdoor
Transparency	≥80%
Isolation resistance	≥20MΩ DC 25V
X.Y resistance	30Ω~350Ω according to the size
The number of hits	≥35,000,000/point
Warranty	1 year
Support Systems	Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac



Resolution	4096 X 4096
Detection method	5 Wire Resistive
Size range	10"~22"
Aspect ratio	4:3/16:9 /16:10
Input method	Finger or touch pen
Position accuracy	2.5~5mm
Isolation Resistance	20MΩ↑ @ DC 25V
Optical Clarity	80 %↑
Endurance Test strikes	Over 1 million
Resistance	200Ω ~ 900Ω
Certificates	CE, FCC, RoHS
Storage Temperature	-20°C ~ 70°C
Surface Hardness	3H
Operating Temperature	-10°C ~ 60°C
Operating Voltage	DC5V
Linearity	<1.5%
Operation Pressure	15 ~ 70g
Message Noise	5 m sec ~ 15 m sec
Drivers available	Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac
Faceplate Surface	Glare hard coating; Anti-Newton ring
Working environment	Under sunlight, indoor and outdoor
X.Y resistance	100Ω~1000Ω according to the size
Humidity	10%~90% RH at 60°C, non-condensing
Relative humidity	10%~90% RH at 40°C, non-condensing

  5 wire resistive touch screen application area show:       Products construction:     Products pictures :                 Products Package:       5 wire resistive touch screen Size List
