19inch 5wire Resistive touch screen panel kit for LCD/Monitor/Kiosk/Industrial Dispaly

Professional Website: https://www.greentouch.com.cn and click here Tel / Wechat : +86 013827465009,TM : keetouch, skype:greentouch5   5 wire Resistive touch screen works:
     GreenTouch 5-wire resistive touch touch screen is a two-layer structure, the two materials (film or glass) having attached ITO having a gap between them, so as to face each other ITO layer, pressed down and touch as top two when an ITO layer contact input will be made, there is the point gap between the ITO layer insulator called the top and bottom, which are spaced points to prevent accidental contact with the ITO layer (input), fails, when the top of the ITO film is pressed and when making contact with the bottom of the glass, the contact area can be detected via electrical conduction. Notable features five-wire resistive is that only the bottom of the glass has been detected function, even if the top of the ITO film is destroyed, the detection function is not affected (in addition to the damaged area).     5 wire resistive screen introduction:       GreenTouch 5-wire resistive touch screen, features unsurpassed accuracy, reliability and excellent light transmission, touch the highest point density, sensitive, drift-free. Pride to environmental conditions such as liquid splashes and washing, these screens are the most contamination-resistant available. It can be a finger, gloved finger, leather or stylus touch. Life time up to 35 million finger touch, to 4-wire resistive touch screen is better, offering retail, industrial, transportation, finance, hospitals, kiosks or telecommunications fantastic performance.     5 wire resistive screen advantages:
1.Long life (4-wire resistive touch screen ten times)
2.Finger, gloved hand and stylus activation
3.Contaminant proof and liquid resistance
The high accuracy and durability
5. The high resolution and sensitivity     5 wire resistive screen applications:
   • POS machines    • Medical
   • GPS
   • One machine
   • Light
   • Motion portable device
   • Access control terminal
   • Portable medical equipment
   • LCD and LED touch display
   • Appliances and other fields          5wire Resistive touch screen Specifications:

Available size	10.4"-22" (can customized)
Screen Ratio	4:3/16:9/16:10
Screen types	5wire Resistive touch screen
Touch object	finger or touch pen
Material	ITO Glass +ITO Film
ITO glass thickness	1.3~2.3mm
Touch force	20~80g
Position accurcy	4.5~5mm
Working voltage	DC≤10V
Response time	<10ms
Working current	5~25MA
Working temperature	-10°C~60°C
Storage temperature	-20°C~70°C
Humidity control	60℃,10%~90%RH, Non-condensing
Relative humidity	40℃,10%~90%RH, Non-condensing
Transparency	≥78%
Surface hardness	3H
Light transmission	92%~100
Durable no scratches	More than 50 million touch operations in one location without failure
Anti-glare coating surface treatment	Anti-Newton ring
Working  environment	indoor and outdoor
Life time	≥10,000,000/dot
Pen sliding durability	≥500,000 times
Finger touch life	≥35,000,000 times
Certificates	CE,FCC,ROHS
Support system	Windows 2000/CE/ Windows XP/ Win 7/Win8/8.1/ Linux/Android/ DOS..

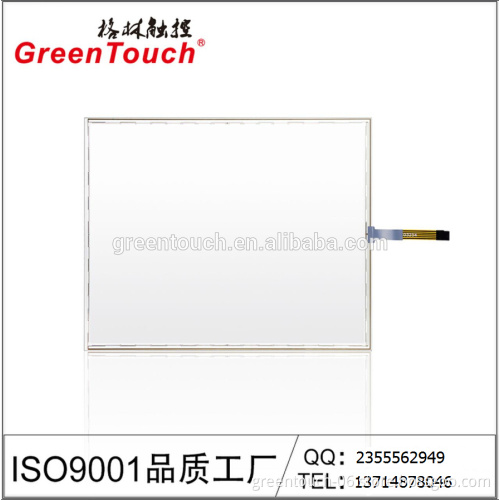

       5wire Resistive touch  screen picuters:     5wire resistive touch screen certificates:   Our factory show:     GreenTouch Related Touch products :   Click here to know more touch products which may interested by you and contact us, Thank you for your concern !
