22 inch 4 wire resistive film to film and touch screen flexible foil film with USB/RS232

22 inch 4 wire resistive film to film and touch screen flexible foil film with USB/RS232         4 wire resistive touch screen from GreenTouch   Products Description:     The 4 wire resitive touchscreen consists of a glass layer with a conductive coating on top and a polyester top sheet with a conductive coating on the bottom. The conductive surfaces are held apart by "spacer dots",usually glass beads that are silk-screened onto the coated glass.
     When a person presses on the top sheet, its conductive side comes in contact with the conductive side of the glass, effectively closing a circuit (this is called pressure sensing). The voltage at the point of contact is read from a wire connected to the top sheet.It can be touched by finger, gloved finger, leather or stylus pen.It is inherently of many advantages such as high accuracy, quick response, drift-free, stable and long durability for a life time of 1,000,000 times finger touches.     Products Classification:

Type	Material	Size	Thickness	Remarks
4wire resistive  touch screen	ITO film+ITO glass	2.8”-12.1”	1.1mm/1.2mm/1.4mm	Can be customized
	ITO film+ITO glass	13.3”-22”	2.3mm
4wire Resistive flexible film to film	ITO film+ITO film	10.4”-22”	0.5mm

            Products Advantage:   u High Precision u Fast Response speed u Stability u Long life service u Adaptable to bad environment(Under sunlight,indoor and outdoor     Products Application:   u Car computer and GPS u Open touch TV/PC u Touch POS u LCD/LED touch monitor u Touch all-in-one pc u Touch Kiosk u And other devices       Products specification:

Interface Type:	USB interface
Resolution	4096x4096
Screen Ratio	4:3/16:9/16:10
Material	Glass + Film or Film + Film
Certificates	CE, FCC, RoHS
Input method	Finger or touch pen
Position accuracy	1.15~2.5mm
Operating Voltage	DC ≤ 10V
Operating current	5~25mA
Response time	Less than 10ms
Touch action force	20~100g
Operating temperature	-10°C~60°C
Storage temperature	-20°C~70°C
Surface hardness	3H
Working environment	Under sunlight, indoor and outdoor
Transparency	≥80%
Isolation resistance	≥20MΩ DC 25V
X.Y resistance	100Ω~1000Ω according to the size
Linearity	≤1.5%
The number of hits	≥1,000,000/point
Warranty	1 year
USB Controller Specs:
Power requirements	+5VDC ( Max100mA, typical 70mA, 50mV peak to peak max ripple)
Resolution	2048 X 2048
Report rate	Max 160 points/sec
Response time	Max 35 ms
Panel resistance	200 ~ 900 ohm ( pin to pin on the same layer )
Dimensions	0.79 in x 2.7 in
Storage temperature	-20 °C to 70°C
Operating temperature	0 °C to 50°C
Calibration	Fast full oriental 4 points position
Compensation	Accuracy 25 points linearity compensation
Mouse Emulator	Right / Left button emulation, Normal / Click on touch / Click on release mode, Auto right button
Operation systems	Windows2000/WindowsXP/Win7/Win8/WindowsNT/WindowsVista/Linux(Ubuntu 12.04)

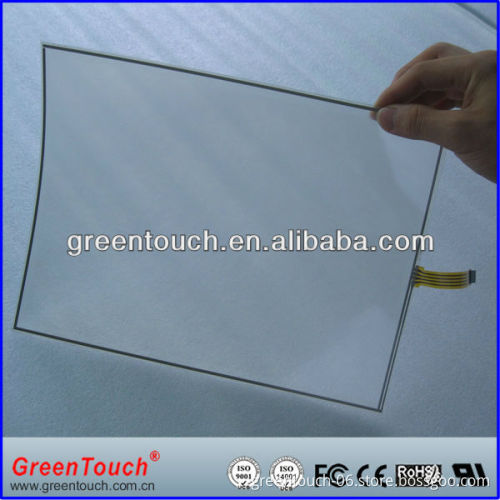

    Products show:     Flexible ITO Film to ITO Film   ITO Glass to ITO Film       Shipment and Payment :     Products Certification:       Factory Show :           Related Products More Touch Products  you  may  interest:   32 inch interactive multi-touch  points touch foil / 42 inch infrared touch screen   17''-100'' smart Multi infrared Touch Screen overlay/ 55 inch infrared touch screen   15'' 4 wire resistive touch screen / 17 inch 4/5 resistive touch screen overlay panel      15/17/19 inch standard/waterproof / dustproof/ vandal-proof saw touch screen
