GreenTouch 17" usb touch sensitive touch foil film for monitor

Specifications Low cost

Finger, gloved hand and stylus activation

accuracy and sensitivity

durability and reliability

Contaminant proof

Our Brand: We accept Neutral(No logo). OEM. ODE .                            17"4 Wire Resistive touch screen film   GreenTouch 4wire resistive touch screen kit over view :
Structure : PET--------------Glare hard coating & Anti-Newton Ring
Glass------------Chemically strengthened ITO glass 0.7mm/1.1mm/1.8mm
Dot Pitch--------5.0mm×5.0mm
Connector: FPC(4-Pin)   GreenTouch 4Wire Resistive touch screen is an outstanding high quality product, suitable for low cost solution. It is inherently of many advantages such as high accuracy, quick response, drift-free, stable and long durability for a life time of 1,000,000 times finger touches. GreenTouch 4 wire Resistive touch screen featured contamination-resistant and waterproof, is designed for the harshest environment such as dust is prevalent or liquid spills, splashes and wash down. It can be touched by finger, gloved finger, leather or stylus pen.   GreenTouch 4wire resistive touch screen kit advantages:
Finger, gloved hand and stylus activation
High accuracy and sensitivity
High durability and reliability
Contaminant proof and liquid resistance
Low cost   4 wire touch screen Application:
Light industrial
Home appliances Portable sport devices
Access control terminals
Portable medical devices   Lcd and LED Monitor And more     4wire resistive touch screen kit specification :

Interface Type:	USB or RS232
Resolution	4096x4096
Screen Ratio	16:9/4:3
Material	Glass + Film or Film + Film
Certificates	CE, FCC, RoHS
Input method	Finger or touch pen
Position accuracy	1.15~2.5mm
Operating Voltage	DC ≤ 10V
Operating current	5~25mA
Response time	Less than 10ms
Touch action force	20~100g
Operating temperature	-10°C~60°C
Storage temperature	-20°C~70°C
Surface hardness	3H
Working environment	Under sunlight, indoor and outdoor
Transparency	≥80%
Isolation resistance	≥20MΩ DC 25V
X.Y resistance	100Ω~1000Ω according to the size
Linearity	≤1.5%
The number of hits	≥1,000,000/point
Warranty	1 year
Support Systems	Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac

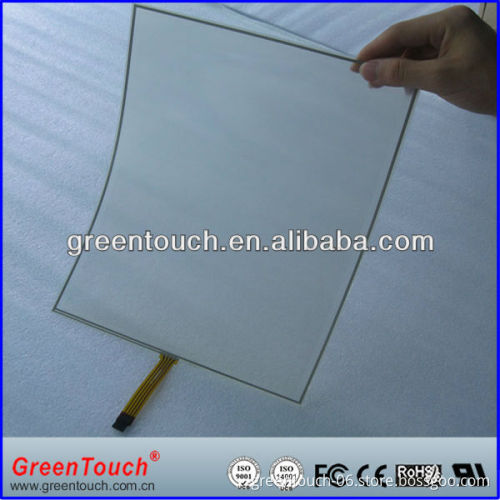

    4wire resistive touch screen kit Pictures :       4wire resistive touch screen panel kit certificate: Our factory show:   Hope to set up friendly business relationship with all of you.Your comments on our products and any information from your market will be highly appreciated.
