24"Transparent Self Adhesive Interactive Touch Foil/Holographic Display

                   Interactive/Capactive touch foil (17”-120”)     Interactive Touch Foil products description :     Interactive touch foil is transparent touch-sensitive film, affixed to the membrane in the back of the glass  or transparent acrylic plate, glass or acrylic panels can instantly transform size touch screen. Only a few  microns thick our thin film display screens can turn any surface into a high definition multi media display surface. Rear projected images, video and  dynamic media content can be displayed in any format, anywhere.   our touch foil can be pasted on a glass window or inside of a glass door and a simple back-projection or  front-projection projector can turn the glass window or glass door into a large touch screen. This film enables projection of product information directly on the glass to attract interactivity with the potential customers. It  is a perfect promotional display that not only provides interactive promotion and customer experience around  the clock  but also records the interactive data from potential customer   Interactive touch foil Type;

Touch foil type for paste	Tail version	Touch controller	Foil ratio	Touch points
Water-adhesive (removable)	Base or bottom	USB interface	16:9 (17”-120”)	2,4,10,20,40 points
Adhesive (permanent)	Side or short	USB interface	4:3 (40”-120”)

    Interactive touch foil advantage: 1. Super-thin,and transparent appearance 2. High definition, Stable touch 3. Well-positioned ,and support multi touch points 4. Through the glass or other objects to touch just like gesture 5. The size can be customized   Interactive touch foil application:  Suitable for Store window displays,  Indoor / outdoor kiosks,Exhibitions, Visitor attractions,  Museums Touch tables,  Training,meeting rooms,etc.                    Interactive touch foil Specification;

Induction method	The improved projected sensing technology, criss-cross X, Y nanowires constitute sensing matrix
Touch size	17"~120" can be customized
Touch accuracy	No drift, the deviation is about 1~3mm
Calibration way	software calibration
Induction thickness (penetration)	Adjusted by software to adapt to various thickness of glass, even wear gloves to produce touch-sensitive, can penetrate non-metallic materials about the thickness of 20 mm (middle to allow air layer), the induction can even penetrate glass thickness about of 25mm
Scanning frequency	60Hz~130HZ
Output way	USB 2.0 (HID public interface to USB Mini B interface)
Compatibility system	WIN7 /WIN8 /Linux (Ubuntu 2.04.4,kernel version:3.11.0-15-generic) / Android4.2 or above ( kernel version>A20->3.3.0,RK3188->3.0.36) etc.
Temperature range	-20°C~60°C
Humidity range	0% RH to 95% RH (without condensation neighborhood)
Transmittance	>93%
Power consumption	Max 0.5W
Product Certification	CE,FCC,ROHS
EMC	EN61000-6-1:2007   EN61000-6-3:2007+A1:2011
The thickness glass	1-12mm

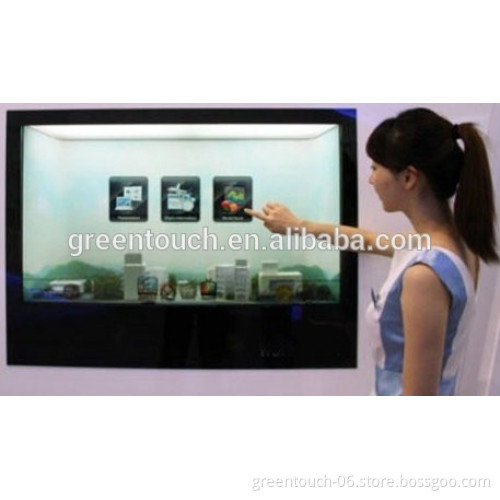

Interactive touch foil pictures shown:     Interactive touch foil certificate:   Delievery and Payment:
