P10 LED Video Display Outdoor Full Color SMD LED Wall Panel

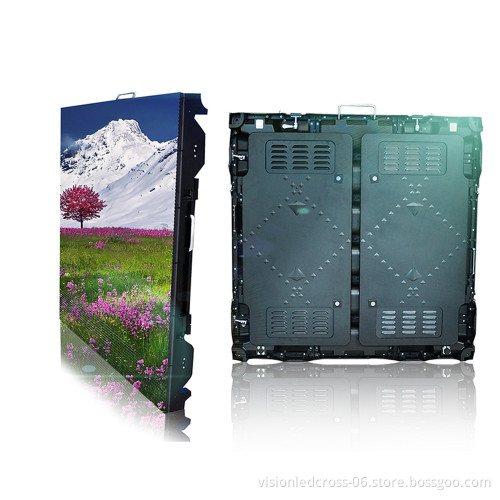

P10 LED Video Display Outdoor Full Color SMD LED Wall Panel   Product advantages:  This design fixed cabinet adopt light weight material (die-casting aluminum) to make it. compared with the tradition iron cabinet(45-50kgs), this cabinet is only 28kgs with same size and strong casing. The new design can help you tosave much labor cost 20%~30%, liking in a same installation situation, iron cabinet needs 4-5 workers, but for this new design cabinet, 2 labors can easily finish all the installation procedures.   Product Spec:

Pixel Pitch	5mm	6.67mm	8mm	10mm
LED Encapsulation	SMD(2727)	SMD(3535)	SMD(3535)	SMD(3535)
Pixel Density	40000 pixels/sqm	22460 pixels/sqm	15625 pixel/sqm	10000pixel/sqm
Cabinet Resolution	192*192dots	144*144dots	120*120dots	96*96dots
Module Resolution	64*32dots	48*24dots	40*20dots	32*16dots
Driving Method	1/8scan	1/6scan	1/5scan	1/2scan
Power (Maximum)	1000W/sqm	700W/sqm	600W/sqm	900W/sqm
Power(Average)	400W/sqm	300W/sqm	250W/sqm	350W/sqm
Cabinet Dimensions	960*960*100mm
Cabinet Material	Die-casting Aluminum
Cabinet Weight	28kgs
Module Size	320*160mm
Brightness	>6000nits
Refresh Frequency	>2500Hz
Gray Level	14bits(16384)~16bits(65536)
Viewing Angle	120
Frame Frequency	>60Hz
Ingress Protection	IP65
Temperature Range	-15~60
Humidity Range	10%~90%RH

  product certificate:     Packaging & Shipping   Packing: Anti-shaking wooden cabinet /Air flight case/carton Shipping:By sea, Air,Express Shipping port: Shenzhen. China   Working Diagram:     Company Information  VisionLED Established in 2003, our company is a professional LED media/video display manufacturer. since its establishment, we are always following the new changes of LED industry. So far, our LED products are sold widely around the world ,VisionLED also has got good reputation from different users, our products are mainly supplied for international market, so offering quality products, competitive price, patient and fast technology support are the root of the ourenterprise survival in the big market. At any time,we are the best one of your reliable choice.                                                 Our Main Products                             Indoor LED Display screen                     Outdoor LED Display Screen                           Flexible display                                   LED Cross/ customized sign        Contact Information:     FAQ Q1: What's the warranty of your LED Display Screen ? A1: We have a 2-year warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2: What about your pre-sale service and post-sale service? A2: For pre-sale service: We have a professional sales team and a 8 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project! For post-sale service: We can instruct you how to use, adjust the screens, and change the boken modules with spare parts. Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!   Q3: Whats your payment term? How long it takes to delivery? A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery. Our average Production time is 16 days, after receiving the deposit.    Q4: What's the control system? A4:  For synchronization control: We use Nova, Linsn Or Colorlight control system. For  asynchronous control: We use Onbon, or Xixun control system.
Q5: How can you ensure the led display product quality? A5: Our led display screen quality is our core competence, for 13 years, what we rely on. We have each stardard process to make quality products. If any quality failures within warranty time, we will refund you on alibaba.
