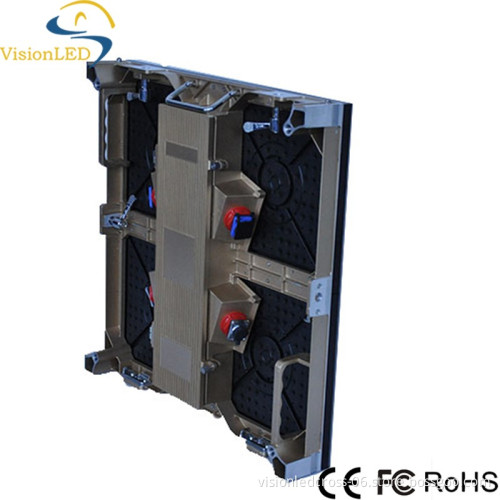

Die-casting Cabinet 500mm*500mm P3.91 LED Display Screen

LED Panel Cabinet 500mm*500mm P3.91 LED Dispaly Screen     Parameters

Module	NO.	Item	Parameter
	1	Module Model	SH-P3.91(Indoor)
	2	Pixel pitch	3.91mm
	3	Module dimension	250mm*250mm
	4	Module density	65,410pixel/sqm
	5	Module resolution	64*64dots
	6	LED encapsulation	SMD 3 in1(2121)
	7	Pixel configuration	1R1G1B
Cabinet	1	Dimension	500mm*500mm*80mm
	2	Physical resolution	128*128dots
	3	Module quantity	4PCS
	4	Weight	7kg/PCS
	5	Material	Die-casting aluminum
	6	Driving method	Constant current+1/16 scan
	7	Brightness	≥1500nits
	8	Max power consumption	800W/SQM
	9	Average consumption	400W/SQM
	10	Frame frequency	60Hz
	11	Refresh frequency	>1200HZ
	12	Gray level	65536 for each color
	13	Input Voltage	AC100-120V  AC200-240V
	14	Power supply	5V/60A   1 PCS
	15	Viewing angle(H/V)	120°/ 120°
	16	viewing distance	≥5m
	17	Working environment	Temperature: -20°C~ 60°C
			Humidity:10%~90%RH
	18	Control system	Synchronous /Asynchronous Control system
	19	Display function	Videos
	20	Certificate	CE Certification (SGS)

Product     Aging & Application        Packaging & Shipping   Function & Advantage   1.Cabinets are made of die-casting aluminium,can be spliced with no crack.
2.P2.5/P3/P3.91/P4/P5/P5.208/P6/P6.25 is optional for you.
3. SMD three-in-one technology with high brightness makes the display have a ultra-wide view & vivid image when in use.
4. Work normally without air conditioning for low powe consumption.
5.Suitable for Indoor application,big square,shopping malls,railway stations,Airport,stage renting,etc.
  Our service 1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.We can provide mature customised solution for you.   Factory Show     Certificate
