Motorized Projector Scissor Lift with Universal Head

Specifications Motorised projector lift,easy to operate and maintance.

Electric projector lift

Various specifications for your referance

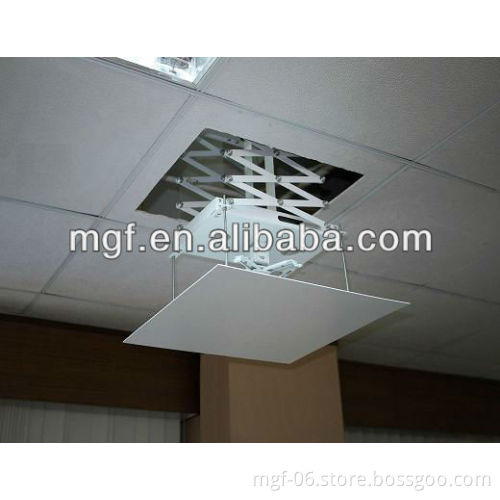

Motorized Projector Scissor Lift with Universal Head   Features: 1,Scissor-type electric projector mounts
2,With double scissors and double-belt structure
3,Smooth operation and accurate positioning
4,Low voice,fashionable styles and elegant appearance.
5,The mount retract to the ceiling when the projector not in use, the decorative base plate parallel with ceiling
6,The projector can be put down (retracted) to any specified location with remote control down (up) button, well protect the camera and save the interior use of space
7,Ideal facilities for modern multimedia conferencing systems, video halls
8,Various specifications for your referance   Detailed Sepecification:

Specifications	SX080	SX100	SX150	SX200
Size of lift Fold up (mm)	350x316x420(L1)	350X316X440(L1)	350X316X480(L1)	350X316X530(L1)
Size of lift Extended (mm)	350x316x1290(L)	350X316X1525(L)	350X316X1995(L)	350X316X2700(L)
Minimum dist for ceiling and false ceiling(mm)	440mm	460mm	500mm	550mm
Bottom Plate size(mm)	500x500	500x500	500x500	500x500
Loading Capacity	15Kg(Max)	15Kg(Max)	15Kg(Max)	15Kg(Max)
Rated voltage	110-240V	110-240V	110-240V	110-240V
Tilt angle	±22.5°	±22.5°	±22.5°	±22.5°
Roll angle	±15°	±15°	±15°	±15°
Motor	SYNCHRONOUS MOTOR	SYNCHRONOUS MOTOR	SYNCHRONOUS MOTOR	SYNCHRONOUS MOTOR
Control Methods	RF remote control/ Wall panel switch/central control/12V trigger	RF remote control/ Wall panel switch/central control/12V trigger	RF remote control/ Wall panel switch/central control/12V trigger	RF remote control/ Wall panel switch/central control/12V trigger
Limit Adjustment	By Limit Switch	By Limit Switch	By Limit Switch	By Limit Switch
Color	White	White	White	White
Packing Dimension(mm)	530x530x260	530x530x260	530x530x300	530x530x350
Net Weight(Kgs)	18	18.5	19.5	21
Gross Weight(Kgs)	19.5	20	21	22.5

    Remote control system: RF remote control, and wall panel switch, with interfaces in the back of the lift, support for 12V trigger, and central control. Package:
