UL SMD3528 Corner LED Under Counter Light Bar

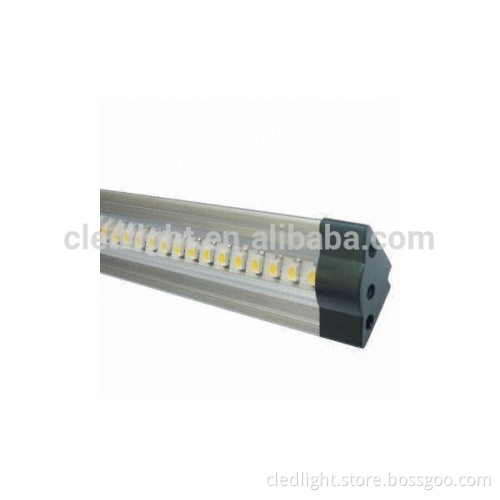

UL SMD3528 Corner LED Under Counter Light Bar Product Description Specifications CLEDLIGHTL’s C04 Linear-Led Lighting is widely used in showcases, display case or furniture. This trigonal Linear-LED Lighting is especially applied for all kinds of square cabinets. It is installed in corner, making angle 45  degree focus on specified accent area. By using connector cable and/or plastic connector, a few lamps can beinstalled in a row quickly. The single Linear-LED Lighting comes in three different sizes.    Benefits •Energy saving up to 50% compared with traditional fluorescent under the same flux  •Life Span–over 50,000 hours •Available in cool white neutral white and warm whit color temperatures; Available in other colors •No harmful ultraviolet (UV) rays •Easy linking up to 36 watts per run •Easy installation •Available in three different sizes (L=300mm/500mm/1000mm) •Using low voltage, more safety   Applications LED show case lighting; LED shelf lighting; LED under counter lighting; LED display case lighting; LED retail  product Lighting; LED Furniture Lighting; LED bookcase lighting; LED wardrobe lighting; LED wine cabinet  lighting; LED under cabinet lighting;LED kitchen cabinet lighting; LED cove lighting; LED accent lighting; LED  task lighting   Technical Operating Data

Product	length	Number of leds	Voltage	Power	Radiance	Color Temp.	Luminous Flux	Led Current
	[mm]	[pcs]	[V DC]	[W]	Angle [°]	[K]	[lm]*	[A]
C04L1	L=300	42	12/24	3	90	2700-6500k	280	0.18
C04L2	L=500	70	12/24	5	90	2700-6500k	460	0.18
CO4L3	L=1000	147	12/24	11	90	2700-6500k	920	0.18

  Technical Features •Dimensions:  33mm (width) x 20mm (height) x “L” •Materials:  Aluminum extrusion with black plastic end caps, Acrylic Lens •Light Source:  High brightness SMD3528 LED  •Operating Temperature:  -20°C to 40°C - Indoors •Warranty:  2 year with proper installation and power supply •Installation: 2 Mounting Clips and 2 M2.6x10 screws make it easy to install   Power supply usage instruction The following table shows how many lamps the power supply can drive respectively. You can select suitable  power supply according to the power per run.

Power Supply	C04L1	C04L2	C04L3
6W	2	1	XXX
12W	4	2	1
24W	8	4	2
36W	12	6	3

  Note: 1) Each Co4 color box includes 1lamp, 2 Mounting Clip, 2 M2.6x10 screws, 1 manual. (1 Plastic  connector, 1 Connector cable is optional) 2) You can choose different power supply and accessories according to the power supply usage instruction   Safety Information 1) Indoor use only 2)LED Module incorporates no protection against short circuits, overload or overheating. Therefore it is  absolutely necessary to operate the modules with an electronically stabilised power supply offering protection against the above mentioned safety risks. Our power supply is specifically designed with protection features  for safe operation. When using power supply other than us, the following basic safety features are required, in addition to any other application specific concerns and local safety codes: • Short circuit protection     • Overload protection     • Overheat protection Packaging & Shipping Package Contents

Product	Color box* size(mm)	Carton size(mm)	Units/carton
C04L1	450X34X23	470(length)X215(width)X215(height)	40
C04L2	650X34X23	670(length)X215(width)X215(height)	40
C04L3	1150X34X23	1170(length)X215(width)X215(height)	40
Power supply(6w)	76X61X46	250(length)X170(width)X270(height)	40
Power supply(12w)	136x58x77	315(length)X290(width)X340(height)	40
Power supply(24w)	136x58x77	315(length)X290(width)X340(height)	40
