UL 3528 LED Under Cabinet Light Price LED Light

UL 3528 LED Under Cabinet Light Price LED Light

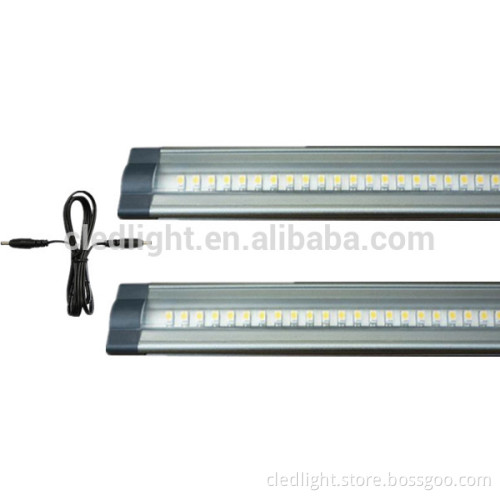

Product Description Benefits CLEDLIGHT’s C01 LinearLed Light is widely used in showcases, display case or furniture. This extremely Thin Linear LED Light is especially applied to hidden/ covert installation. After processed by special optical system, which has patented, this kind of extremely thin linear light indeed becomes a continuous / real linear light  source. By using connector cable and/or plastic connector, a few lamps can be installed in a row quickly and  easily. The single LinearLED Light comes in three different sizes (L=300mm/500mm/1000mm)    1.Energy saving up to 50% compared with traditional fluorescent under the same flux  2.Life Span–over 50,000 hours
3. Available in cool white, neutral white, and warm white color temperatures; Available in other colors
4.Easy linking up to 36 watts per run
5.Easy installation
6.Low voltage, more safety 7.C01 type can be waterproof.   Specifications 1.Dimensions:  33mm (width) x 8mm (height) x “L”
2.Materials:  Aluminum extrusion with black plastic end caps, Acrylic Lens
3.Light Source:  High brightness SMD3528 LED
4.Operating Temperature:  -20°C to 40°C  Indoors
5.Warranty:  2 year with proper installation and power supply
6.Installation: 2 Mounting Clips and 2 M2.6x10 screws make it easy to install

Product	length	Number of       leds	Voltage	Power	Radiance	Color Temp.	Luminous Flux	Led Current
	[mm]	[pcs]	[V DC]	[W]	Angle [°]	[K]	[lm]*	[A]
C01L1	L=300	42	12/24	3	90	2700-6500k	280	0.18
C01L2	L=500	70	12/24	5	90	2700-6500k	460	0.18
CO1L3	L=1000	147	12/24	11	90	2700-6500k	920	0.18

Note 1) Each Co1 color box includes 1lamp, 2 Mounting Clip, 2 M2.6x10 screws, 1 manual. (1 Plastic connector,  1 Connector cable is optional) 2) You can choose different power supply and accessories according to the power supply usage instruction 3) The power supply’s power should be over the total power when lamps are linked up.   Power supply usage instruction The following table shows how many lamps the power supply can drive respectively. You can select suitable power supply according to the power per run.

Power Supply	C01L1	C01L2	C01L3
6W	2	1	XXX
12W	4	2	1
24W	8	4	2
36W	12	6	3

Complete set connection guide Safety Information 1) Indoor use only 2)LED Module incorporates no protection against short circuits, overload or overheating. Therefore it is  absolutely necessary to operate the modules with an electronically stabilised power supply offering protection against the above mentioned safety risks. Our power supply is specifically designed with protection features  for safe operation. When using power supply other than us, the following basic safety features are required, in addition to any other application specific concerns and local safety codes: • Short circuit protection     • Overload protection     • Overheat protection   Applications
LED show case lighting; LED shelf lighting; LED under counter lighting; LED display case lighting; LED retail  product Lighting; LED Furniture Lighting; LED bookcase lighting; LED wardrobe lighting; LED wine cabinet  lighting; LED under cabinet lighting; LED kitchen cabinet lighting; LED cove lighting; LED accent lighting; LED  task lighting; LED product line lighting. Packaging & Shipping Packing Information

Product	Color box* size	Carton size	Units/carton
C01L1	450X36X12	470(length)X120(width)X230(height)	40
C01L2	650X36X12	670(length)X120(width)X230(height)	40
C01L3	1150X36X12	1170(length)X120(width)X230(height)	40
Power supply(6w)	76X61X46	250(length)X170(width)X270(height)	40
Power supply(12w)	136x58x77	315(length)X290(width)X340(height)	40
Power supply(24w)	136x58x77	315(length)X290(width)X340(height)	40
Power supply with DC receptacle(24w)	136x58x77	315(length)X290(width)X340(height)	40

Our Services Trade Terms
1.Payment: T/T in advance (Western Union is welcomed)
2.Production lead time: 2-4 weekss
3.Sample can be delivered in 5-7 days
4.Shipping freight are quoted under your requests
5.Shipped:DHL, Fedex, UPS, TNT etc.
6.Discounts are offered based on order quantities   Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributorship are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information Company Information
