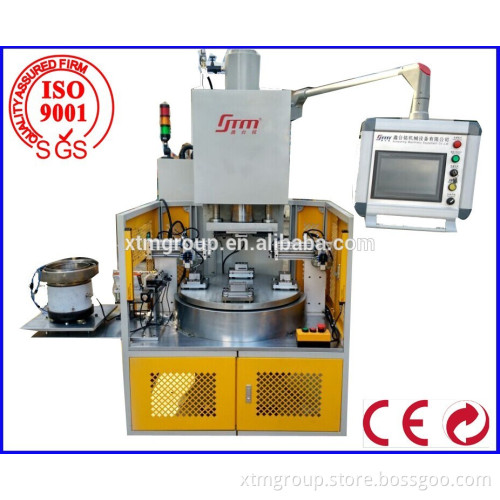

hydralic MIM punching /shaping automatic machinery

this MIM hydralic shaping machine was design for MIM industry ( Metal powder injection molding technology)
 and PM /PIM industry    the feature of the MIM shaping machine      1.this series hydralic perss to 2-20mpa liquid pressure as power source an external three-phase   ac 200 60hz  ac3810v 50hz or ac power    2.driven by hydralic pressure and geberated by a motor this machine adopts dual oil cylinder and hydraulic circuit causes low heat while operateing at a speed of more than 150mm per second    3.precise  four -column three- platen frame the grad of parallelism between the active platen and the workplatform could reach up to more than 0.01mm under the control mode thay the three platen are controled by the four precise guide sleeves   3. Standby equipment, slip quickly move up and down when the noise is not more than 75 decibels.   4. Appling four-post three plate structure, activity board vertical precision is controlled by four precision guide sleeve, the working face and the face of an arbitrary point on the precision of the parallel below 0.1 MM.   5. Punch with waste gas assembly. And at the next table central have waste blanking trough.   6. Press the cutting of the check point location generally through the pressure switch, to control the position sensor.
7. Break up with automatic counting function, dynamic and semi-automatic two kinds of control mode, manual can be pressed on any trip range of upper die, equipped with an emergency recovery button, can also be equipped with infrared hand protectors   8. Pressure, stroke, cutting speed, blowing time, height can adjust, convenient operation;   9. Built-in hydraulic system at the bottom of the tank, neat appearance, sedate.   10. This series of hydraulic mechanical output range 15 tf. - 200 tf optional. (9.8 KN tf = 1000 KGF = 1)     the scope of application    A, automatic plastic machine applicable products:
Currently widely used in common electronic accessories products, such as: mobile phones, such as the IPD camera decoration and card slot, cato
Small parts such as metal (MIM) injection, tongda group, jin sheng group company, has been gradually using automatic         about us    Of course we are the manufacture , we have ourselvse professional team ,the machine could be cusmazed to meet the different clients request . Those years our engineers upgrade the traditional craft ,to catch up with the market demand. The machine are more and more humanization ,safety,convenient,divrsification . One series have different kinds of style to meet the clients special request,
