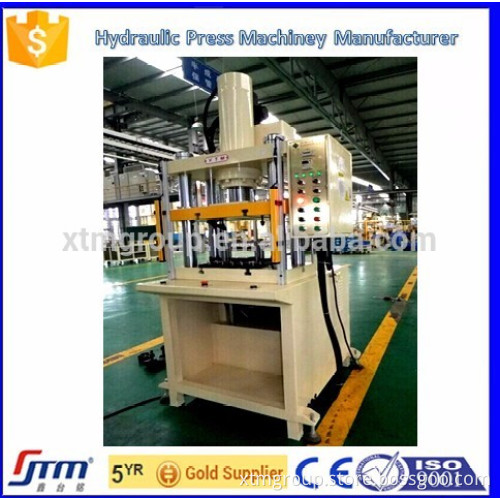

Top Quality Four Column Trimming Machine For Aluminum Alloy Die Casting Product

Top Quality Four Column Trimming Machine For Aluminum Alloy Die Casting Product

Product Features

  1. Precise four-column three-platen frame, the grad of parallelism between the Active platen
and the work platform could reach up to more than 0.08mm under the control mode that the
three platen are controled by the four precise guide sleeves;     schematic diagram:

2. Manual & Semi-automation operation system, front stretched out control platform, emergency buttons, security curtain lights, considerate design for overall security;    schematic diagram:
3.Instrument of loading material and blow facility, special design concept for special processing work;       4. Pressing force, stroke of cutting, dwell time, die height could be adjusted manually comply with pratical demand;
5. Standard idler wheel and goblet-shaped machine feet, convenient to move. schematic diagram:
6. World-famous brand of hydraulic units and electric accessories.



Technical Parameters

(Technical parameter can be customized according to your special need ):

Model			XTM106K-10	XTM106K-20	XTM106K-30	XTM106K-40	XTM106K-50	XTM106K-60
Nominal Force			10T	20T	30T	40T	50T	60T
Max. Hydraulic Working Pressure			8MPa	16MPa	17Mpa	15.5MPa	15.6MPa	15.5MPa
Knock-out Force			7.6T	3T	3.9T	4.3T	4.8T	5.3T
Worktable Height			780mm	780mm	780mm	780mm	780mm	780mm
Max. Operational Height			400mm	400mm	500mm	500mm	500mm	500mm
Max. Stroke			200mm	300mm	300mm	300mm	300mm	300mm
Dimensions of the Table	L-R		500mm	500mm	500mm	600mm	600mm	600mm
	F-B		400mm	400mm	400mm	500mm	500mm	500mm
Speed of Slide	Descending Speed		≥ 120mm/s	≥142mm/s	≥140mm/s	≥142mm/s	≥142mm/s	≥150mm/s
	Pressing Speed		≥19mm/s	≥16mm/s	≥12mm/s	≥9mm/s	≥7mm/s	≥7mm/s
	Returning Speed		≥100mm/s	≥100mm/s	≥100mm/s	≥82mm/s	≥74mm/s	≥85mm/s
Overall Size of the Machine			700×600×1920(mm)	700×600×2050(mm)	700×600×2250(mm)	700×600×2500(mm)	700×600×2550(mm)	700×600×2600(mm)
Power of Motor			3.75KW	2.2KW	3.7KW	3.7KW	5.5KW	5.5KW



Scope of Applications

   Trimming of burrs for aluminum alloy die casting products;


Other Applicaboe Processing

  1. Blanking             2. Powder pressing 3. Press fitting                    4. Embossing  5. Shaping / forming
