Constant Pressure Press Machine Hydraulic for Trimming by CE

Specifications press machine hydraulic

1.Die cutitng

2.shaping of burrs

3. casting products

4.High quality & repeatability

. Constant Pressure Press Machine Hydraulic for Trimming by CE   Product features:   1.Precise four-column three-platen frame, the grad of parallelism between the Active platen and the work platform could reach up to more than 0.08mm under the control mode that the three platen are controled by the four precise guide sleeves;    2.Manual & Semi-automation operation system, front stretched out control platform, emergency buttons, security curtain light, considerate design for overall security;     3.Instrument of loading material and blow facility, special design concept for special processing work;     4.Pressing force, stroke of cutting, dwell time, die height could be adjusted manually comply with pratical demand;    5.Standard idler wheel and goblet shaped machine feet, convenient to move.   Technical Parameter:

Item	XTM-pro-106-3T	XTM-pro-106-5T	XTM-pro-106-10T	XTM-pro-106- 15T
Theoretic output(Ton)	1-3	1.5-5	3-10	5-15
Operation surface sizse(mm)	400*300	500*400	500*400	500*400
Max.Operating Height(mm)	400	400	400	400
Cylinder Stroke(mm)	200	200	200	200
Cylinder descending speed(mm/s)	75	50	65	65
Cylinder ascending speed(mm/s)	100	65	85	85
Power Supply	3ø380AVC,50/60Hz	3ø380AVC,50/60Hz	3ø380AVC,50/60Hz	3ø380AVC,50/60Hz
Motor Power(KW)	2.25	2.25	3.75	3.75

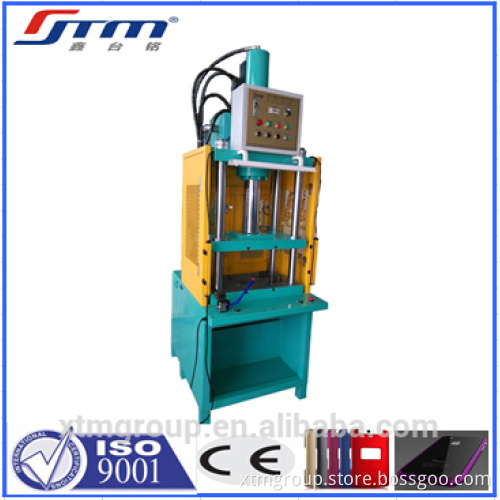

  .Constant Pressure Hydraulic Press (Front View)     .Constant Pressure Hydraulic Press (Rear View)     .Constant Pressure Hydraulic Press (Hydraulic System)       Company Strength   .Xin Tai Ming Over View     .Xin Tai Ming Work Shop      .Clients' Visitation       .Xin Tai Ming Exhibition     .Xin Tai Ming Certificate         .Xin Tai Ming Other relevant products     .Constant Pressure Hydraulic Press(Xin Tai Ming warmly welcome your visitation)
