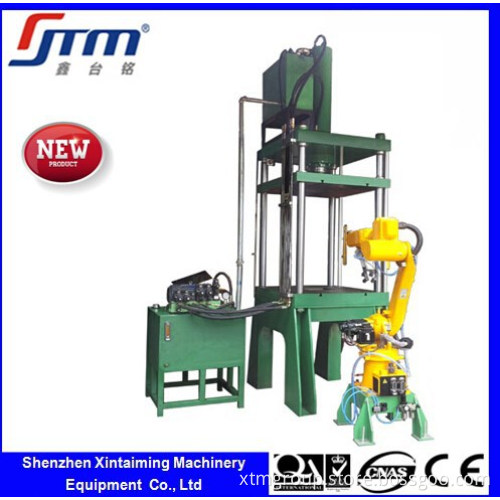

Full Automatic Hydraulic Metal Casting Products Trimming Machine With Robot Arm

Full Automatic Hydraulic Metal Casting Products Trimming Machine With Robot Arm    Product Description  Machine Feature
1. Frame of 4-column 3-plate design for high grde of parallelism between the active plate and the work platform,and leads to high precision of pressing.   2. Hydraulic pipe system uses integrated circuits manifold block fits inside the press to reduce piping and oil leaks.   3. Operated by double-button switch.   4. Selector switch modes of operation:jog (setup) and run (cycle).   5. Flexibly adjustable pressure and stroke.   6. Machine dwell time and stroke could be setspecially as per processing requirements;   7. Ideal of double SLC(Security Light Curtain)makes it safe of operation.   8. Front Side Covers with emergencey switches;Protective fence and the safety interlock can beadded to upgrade the secure.   9. Pipes, flange and joint with vibrations proofand leakage proof design and setting .   10. Four Goblet shaped Press Feet and idler wheels can be added to make it convenience to locate and move.   Highlights of Machine   XTM-106K adopts advanced dual oil cylinder,achieves two-stage speed control with sliding block, high speed closing and low speed pressing,high speed back stroke.   Application Scope    For Metal Casting Products Trimming, such as Magnesium Alloy Casting Products Trimming, Aluminum Casting Products Edge Trimming, and so on.      Specifications

Model			XTM106K-10	XTM106K-20	XTM106K-30	XTM106K-40	XTM106K-50	XTM106K-60
Nominal Force			10T	20T	30T	40T	50T	60T
Max. Hydraulic Working Pressure			8MPa	16MPa	17Mpa	15.5MPa	15.6MPa	15.5MPa
Knock-out Force			7.6T	3T	3.9T	4.3T	4.8T	5.3T
Worktable Height			780mm	780mm	780mm	780mm	780mm	780mm
Max. Operational Height			400mm	400mm	500mm	500mm	500mm	500mm
Max. Stroke			200mm	300mm	300mm	300mm	300mm	300mm
Dimensions of the Table	L-R		500mm	500mm	500mm	600mm	600mm	600mm
	F-B		400mm	400mm	400mm	500mm	500mm	500mm
Speed of Slide	Descending Speed		≥ 120mm/s	≥142mm/s	≥140mm/s	≥142mm/s	≥142mm/s	≥150mm/s
	Pressing Speed		≥19mm/s	≥16mm/s	≥12mm/s	≥9mm/s	≥7mm/s	≥7mm/s
	Returning Speed		≥100mm/s	≥100mm/s	≥100mm/s	≥82mm/s	≥74mm/s	≥85mm/s
Overall Size of the Machine			700×600×1920(mm)	700×600×2050(mm)	700×600×2250(mm)	700×600×2500(mm)	700×600×2550(mm)	700×600×2600(mm)
Power of Motor			3.75KW	2.2KW	3.7KW	3.7KW	5.5KW	5.5KW

  Machine Details   Metal casting product triming machine with robot arm in our workshop:    Customized large workbench trimming machine:           Packaging & Shipping   Our Services   Pre-sale  Analysing the customer's need with great care  Select the suitable model of machine  Providing perfect solution with accurate machine specification    Sales Provide video of machine operation  Provide training for operator   After-sale One year of warranty. Offering the according parts for free, if any error(not man-made) happens within the period of guarantee. Offer overseas service if we(the Two Parties) can come to an overseas service agreement.
