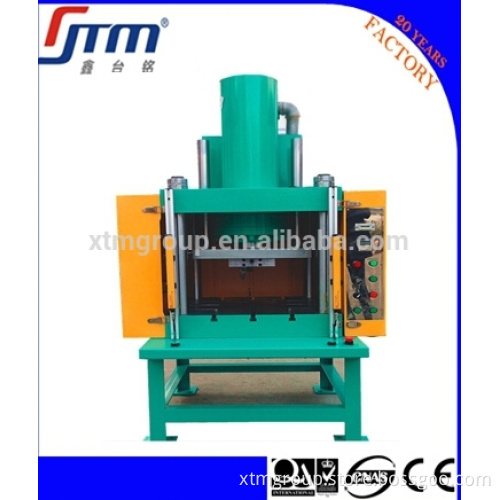

Aluminum Die Casting Products Trimming Machine with 60 ton capacity, wholesale Price

Aluminum Die Casting Products Trimming Machine with 60 ton capacity,  wholesale Price        Product Features

1. Precise four-column three-platen frame, the grad of parallelism between the Active platen
and the work platform could reach up to more than 0.08mm under the control mode that the
three platen are controled by the four precise guide sleeves;     2. Manual & Semi-automation operation system, front stretched out control platform, emergency
buttons, security curtain lights, considerate design for overall security;      3.I nstrument of loading material and blow facility, special design concept for special processing work;       4. Pressing force, stroke of cutting, dwell time, die height could be adjusted manually comply with pratical demand;
5. Standard idler wheel and goblet-shaped machine feet, convenient to move. schematic diagram:

6. World-famous brand of hydraulic units and electric accessories.


Technical parameter
(Technical parameter kan be customized according to client's need ):

Model			XTM106K-10	XTM106K-20	XTM106K-30	XTM106K-40	XTM106K-50	XTM106K-60
Nominal Force			10T	20T	30T	40T	50T	60T
Max. Hydraulic Working Pressure			8MPa	16MPa	17Mpa	15.5MPa	15.6MPa	15.5MPa
Knock-out Force			7.6T	3T	3.9T	4.3T	4.8T	5.3T
Worktable Height			780mm	780mm	780mm	780mm	780mm	780mm
Max. Operational Height			400mm	400mm	500mm	500mm	500mm	500mm
Max. Stroke			200mm	300mm	300mm	300mm	300mm	300mm
Dimensions of the Table	L-R		500mm	500mm	500mm	600mm	600mm	600mm
	F-B		400mm	400mm	400mm	500mm	500mm	500mm
Speed of Slide	Descending Speed		≥ 120mm/s	≥142mm/s	≥140mm/s	≥142mm/s	≥142mm/s	≥150mm/s
	Pressing Speed		≥19mm/s	≥16mm/s	≥12mm/s	≥9mm/s	≥7mm/s	≥7mm/s
	Returning Speed		≥100mm/s	≥100mm/s	≥100mm/s	≥82mm/s	≥74mm/s	≥85mm/s
Overall Size of the Machine			700×600×1920(mm)	700×600×2050(mm)	700×600×2250(mm)	700×600×2500(mm)	700×600×2550(mm)	700×600×2600(mm)
Power of Motor			3.75KW	2.2KW	3.7KW	3.7KW	5.5KW	5.5KW

    Application scope:     1.Die cutitng and shaping of burrs of varioius Aluminium magnesium alloy die casting products;
2.Overall cutitng of plastic products, forming of plastic material, such as blanking, stretching
andembossing of plates,  pressing of plastic and powder products, and others.
3.It is comprehensively used in auto and motorcycle fitting sectors.   Packing     Company Profile
