Advanced CNC Features Automatic Screen Protector Punching Machine

Specifications Screen Protector Punching Machine

1.Automatic Feeding,Die Cutting,Wast Discharge

2.High Precision With +-0.05mm

3.CE/ISO

Advanced CNC Features Automatic Screen Protector Punching Machine       Product Description   1. High preciusion: With CNC servo film-pulling and positioning system, die-cutting precision is up to ±0.05mm;   2. Simple and easy to operate: One stop operation of film feeding, lamilating, die cutting ,waste discharge and sheet cutting or rewinding;

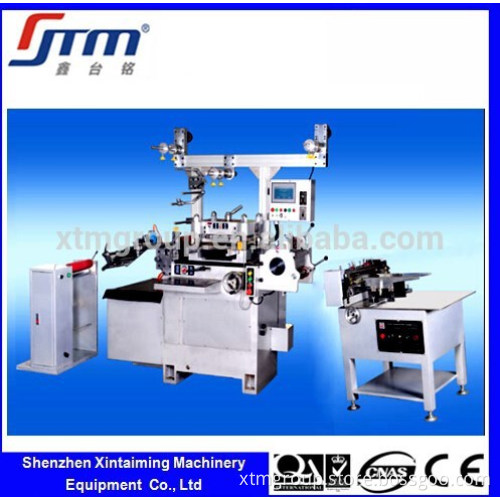

3. Advanced automatic control: Autonatic feeding, positioning, lamilating, die cutting, wast discharge, sheet cutting.   Machine Pictures
 Technical Parameters

Specification	XTM-105FAC-1 seat	XTM-105FAC -2seat	XTM-105FAC -1 seat	XTM-105FAC -2seat
Max. Film Width(mm)	320	320	360	360
Max. Die Cutting Size(mm*mm)	300*300	300*300	340*340	340*340
Maximal Die Cutting Speed (R.P.M.)	30~200	30~200	30~200	30~200
Precision (MM)	±0.05	±0.05	±0.05	±0.05
Main Driver Motor  power (KW)	2.2	3.7	3.7	3.7
Rated Voltage(V)	220	220	220	220
Size of the Machine(mm)	1830*1360*1800	2800*1360*1800	1850*1380*1800	2840*1380*1800
Installation Area(mm)	5000*3000	6000*3000	5000*3000	6000*3000
Wood case Packing volume(CBM)	6	9	6	9
Net Weight(KG)	1500	2500	1800	3600
Production Lead Time	25-35 Workdays

                                                                                                Standard Functions:
Autonatic paper feeding, lamilating, die cutting, wast discharge, sheet cutting.
Standard Configurations:
1seat: one Unwinder, Lamination unit, Die cutting unit, one Sheet cutter, one set die cutting plate.
2seats: one Unwinder, Lamination unit, Die cutting unit, one Sheet cutter, two set die cutting plate.
Optional Configurations:
Hot-stamping device, Punching device, Rewinder.

The brands of the main parts
NO.	Parts name	Origin	Brand
1	Computer	Japan	Yaskawa
2	Main Motor	Taiwan	SM
3	Server system	Japan	Yaskawa
4	Electric eye	Germany	SICK
5	Clutch	Taiwan	YANXIN
6	Electric relay	Japan	Omron
7	Inverter	Taiwan	Taida

  Application Scope    The 105FAC die cutting mahcine is is widely used in Punching Screen Protector; self-adhesive materials; thin polyester fiber film trademark, PET, PVC, PP, PE; insulating materials, viscose, shielding materials; 3M, SONY, NITTO, TEST, PORON and other specially adhesive tape; reflective film, astigmatism film, anti-static protection film, opaque aluminum foil, prism film, holographic film and so on.
