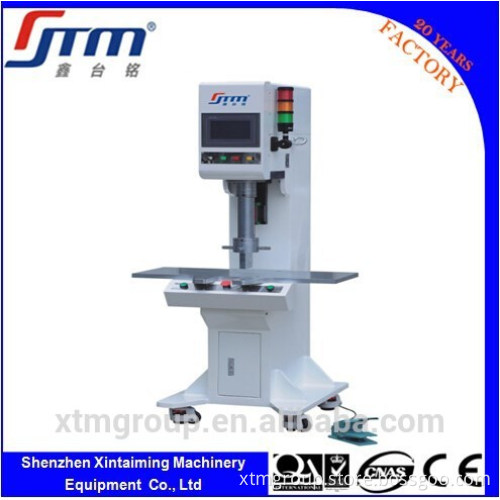

CNC CNC Or Not And Servo Press Type Precision Servo Press Machine Manufacturer In Shenzhen

Specifications Precise reappearances

Suitable for the press-fitting depth control

Flexible action by free motion

Low noise and low vibration

CNC CNC or not and Servo Press type Precision Servo Press Machine Manufacturer in Shenzhen      Product Description
  CNC servo press for assembly is a new type servo press for assembly work. As a professional hydraulic and servo press machine manufacturer with more than 10-year experience from shenzhen, we supply high quality servo press all over the world.

1.  Servo motor driven high-precision ball screw for precision assembly work.    2.   Precise closed-loop control of pressure and displacement .   3.   Entire process graphs of Press-fit force and displacement can be displayed on the LCD touch screen.    4.   Automatically determines the eligibility of product in any stage of the press process,100% removes defective products in  real  time, enabling online quality control.    5.  All technical data (pressure,displacement,press speed ,dwell time) can be set via frendly man-machine interface, easy to operate.   6.  100 of different kinds of press-fit programe can be stored.   7.  Seven kinds of press-fit models to choose to meet the requirements of different processes.   8.  Simply callout the different mounting program to meet the process of different specification product, easily implement a multifunctional and flexible set of lines.



         Highlight of high precision servo presses         1.Compared to the traditional pneumatic press and hydraulic presses, more than 80% of energy-
saving, more environmentally friendly and safe, can meet the requirements of clean room equipment.

      2.Connected to your computer through the external ports, press-fit data can be stored on your computer, ensure that the processing data can be traced back, ease of production and quality management control.
        Functions of human-computer interface of servo press         The functions and working interfaces which can be fast switched of the color touch screen controller are as below:                                  parameter setting                                                                             monitoring of I/O                                         current curve                                                                          production data statement                                                 data     Technical Parameter
CNC servo press type servo press, professional servo machine manufacturer, machine specifications customization supported.

precise servo press		200kgf	500kgf	1000kgf	2000kgf	5000kgf	8000kgf
work temperature		0-40°C
Main cylinder stroke		AC220V single phase			AC380 three phase
press mode		constant press speed, precise position control
		constant press speed, precise pressure control
		constant press speed, precise displacement control
press mode		100 kinds of press mode
human-computer interface		65536 Colors, 7Inch Touch Screen
control mode		100Mbps high speed communication module, PLC+exclusive control unit
drive mode		precise AC servo motor, 7 class well ground ball screw
I/O interface		USB2.0, down load & upload available
die connector dia.		∅ 8mm	∅ 16mm	∅ 16mm	∅ 20mm	∅ 25mm	∅ 30mm
pressure output	nominal force	200kgf	500kgf	1000kgf	2000kgf	5000kgf	8000kgf
	range of application	10%,100% of the entire stroke
	unit	0.1kgf
	pressure precision	1%F.S
	repeat duration	1‰ F.S
displacement/stroke	standard Stroke	50/100mm			150/200/250mm
	unit	0.001mm
	repeat duration	0.01mm
linear speed	fast forward	0.1- -160mm/s				0.1- -200mm/s
	detect	0.1- -20mm/s				0.1- -30mm/s
	press	0.1- -35mm/s				0.1- -50mm/s
	return	0.1- -160mm/s				0.1- -200mm/s
dwell time	Max.	99.9sec
	reccomended	<10sec
	factory reset	0.1sec

    Dimension   Dimension of precision servo presses XST desk-type            Dimension of precision servo presses XST floor-type                Shenzhen Xintaiming Machinery Equipment Co., Ltd


   Shenzhen Xintaiming Machinery Equipment Co., Ltd, the leading company of air and hydraulic press in China       We have sold our hydraulic press machines to Germany, Hungary, Russia, India, Indonesia, Thailand,  Vietnam, USA, Mexico, Brazil, Italy, Saudi Arabia, Bahrain, South Africa, Australia, Iran and so on more than 20 countries .
  X.T.M Advantage

Key aspects of the X.T.M success are:  Continuous investment in research & development (more than 7% of profits).  First class quality of raw materials . Specialized workforce Wide market service network throughout the country

Workforce & Facility




7500sq meter manufacturing facility, moe than 150 full time employees, X.T.M is fully capable of
handling the growing demand worldwide, and offering excellent technology, solid qualit at highly competitive prices.


Quality Assurance

Exibition & Visit


Cooperative Partners

Strong research and development ability, powerful marketing ability, commitment, expertise and dedication. When it comes to hydraulic press machines or pneumatic press machine, Please feel no hesitation to contract with X.T.M.
