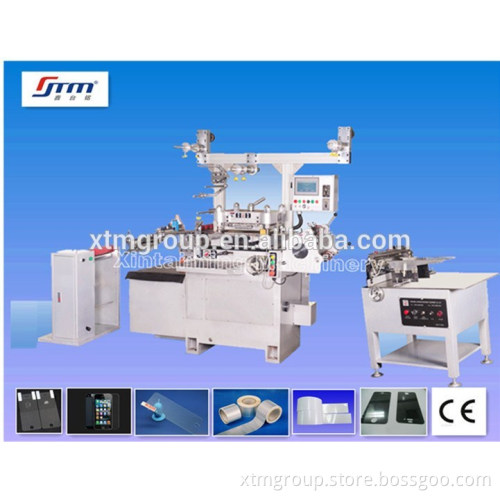

High Grade Screen Protector Machine Used in Mass Production Line

Specifications Screen Protector Machine

1.Technology: Japan and Taiwan

2.High precision with +-0.05mm

3. Advanced components and accessories

   High Grade Screen Protector Machine Used in Mass Production Line   Product Description     1. High preciusion: With CNC servo film-pulling system,  the die-cutting precision is up to ±0.05mm;   2. Simple and easy to operate: One stop operation of film feeding, lamilating, die cutting ,waste discharge and sheet cutting or rewinding;
3. High quality configuration: Built-in centralized automatic oil supply system, which guarantees machines run at high speed without wear-down;

Specification	XTM-105FAC-1 seat	XTM-105FAC -2seat	XTM-105FAC -1 seat	XTM-105FAC -2seat
Max. Film Width(mm)	320	320	360	360
Max. Die Cutting Size(mm*mm)	300*300	300*300	340*340	340*340
Maximal Die Cutting Speed (R.P.M.)	30~200	30~200	30~200	30~200
Precision (MM)	±0.05	±0.05	±0.05	±0.05
Main Driver Motor  power (KW)	2.2	3.7	3.7	3.7
Rated Voltage(V)	220	220	220	220
Size of the Machine(mm)	1830*1360*1800	2800*1360*1800	1850*1380*1800	2840*1380*1800
Installation Area(mm)	5000*3000	6000*3000	5000*3000	6000*3000
Wood case Packing volume(CBM)	6	9	6	9
Net Weight(KG)	1500	2500	1800	3600



Machine Parts& Accessories

  Company Strength

Company Overview



Exhibitions



Customer's Visiting



Certificates

    High Grade Screen Protector Machine Used in Mass Production Line     Our Services   Pre-sale  Analysing the customer's need with great care  Select the suitable model of machine  Providing perfect solution with accurate machine specification    Sales  Provide video of machine operation   Provide training for operator   After-sale  One year of warranty.  Offering the according parts for free, if any error(not man-made) happens within the period of guarantee. Offer overseas service if we(the Two Parties) can come to an overseas service agreement.
