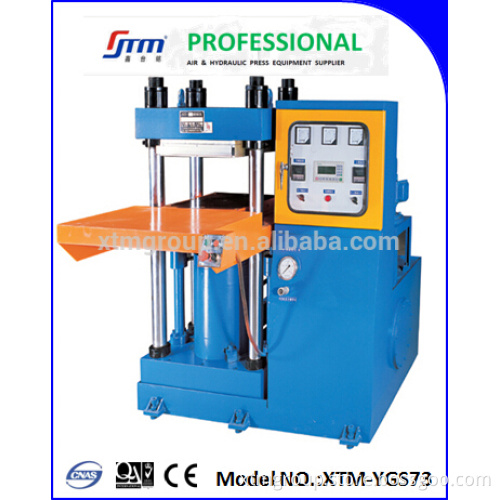

Top Quality Products Hydraulic Rubber Vulcanizing Machine,Hydraulic Press for Rubber Vulcanization

Specifications PLC control;

Single-layer, multi-layer of machine is available ;

Low energy consumption, low noise;

Fast oil cylinder.

Top Quality Products Hydraulic Rubber Vulcanizing Machine,Hydraulic Press for Rubber Vulcanization
  Product Description       Equiped with fast oil cylinder,high speed,good performance.

    Oil seals adopt ring-oriented technology, oil-leakage proof, durable.

    The heating temperature and vulcanizing time can be adjusted via the numerical display controller .

    Considerate design for highly accuratly mold positionging.

    Pressure adjustable.

    Single-layer, multi-layer of machine model is available .



Technical Parameter

Model		Unit	YGS73-50T	YGS73-100T	YGS73 -150T	YGS73-200T
Main Cylinder nominal force		KN	500	1000	1500	2000
Max. Stroke of Ram		mm	250	250	250	250
Distance between table and upper hot plate		mm	250	250	250	250
Power of Heating Plate		KW	7.2	7.2	8.4	14.4
Speed of slide	up with empty load	mm/s	90	90	90	90
	press		6	4.5	4	4
	return		115	160	160	220
Motor power		KW	4	5.5	5.5	5.5
Table size	L-R	mm	420	460	500	560
	F-B		420	480	500	600



Scope of Application
      1. YGS73 Series Hydraulic  Press Rubber Machineis mainly used in Vulcanized rubber products, such as electrical rubber parts, rubber products for medical, household rubber products, automotive rubber parts, etc.


      2. YGS73 Series is Also used in bakelite and other pressing of thermosetting materials, powder metallurgy products.
