Top Quality Products Hydraulic Press For Rubber Vulcanization With ISO / CE

Specifications PLC control;

Applicable for various double-layer or triple-layer mould ;

Considerate design for highly accuratly mold position

Top Quality Products Hydraulic Press For Rubber Vulcanization With ISO / CE

Product Description

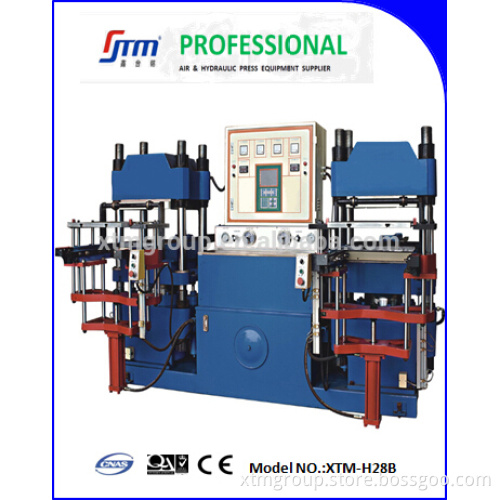

   XTM-H28B is applicable for press forming of vulcanized rubber product, it is a ideal equipment for rubber vulcanization machinery manufacturing.

 1.  Frame of 4-column 3-plate design for high grde of parallelism between the active plate and the work platform,and leads to
      high precision of pressing.

  2. Process control such as pressing  ,venting and machine protecting via PLC control system ,with color screen touch   controller.

  3. Slow speed of alignment adjusting is provided to make the moulds calibration more safe.

  4. Two-stage speed control with sliding block, high speed closing and low speed profiling pressing,high speed back stroke.

  5. Ideal of double SLC(Security Light Curtain) makes it safe of operation.

  6. Overload protection device and overrun switch is available .






Technical Parameter

Model		Unit	H28B-100T	H28B-200T	H28B-300T	H28B-400T	H28B-500T
Main Cylinder nominal force		KN	1000/1000	2000/2000	3000/3000	4000/4000	5000/5000
Max. Stroke of Ram		mm	250	250	250	250	350
Dimension of Haeting Plate		mm	450*460	550*560	600*660	650*660	650*660
Power of Heating Plate		KW	7.2/7.2	10.2/10.2	12.1/12.1	12.1/12.1	12.1/12.1
Overall size	L-R	mm	2750	3100	3320	3460	3720
	F-B		2300	2500	2610	2750	2850
	H		1620	1820	2150	2200	2300
Motor power		KW	5.5/5.5	7.5/7.5	11/11	11/11	11/11
Approx.Total Weight		T	6	8	12	13.5	1

      Operation Procedure
1.Mould of Hydraulic Press Rubber Machine closing,entry,and pressing       2.Mould of Hydraulic  Press Rubber Machine opening,exit and upper mold plate opening angle to 90°




Scope of Application

     XTM-H28B is applicable for press forming of vulcanized rubber product,  thermosetting material, magnetic material, sealing element, electronic element, durable appliance and other sintered metal products.






Shenzhen Xintaiming Machinery Equipment Co., Ltd


   Shenzhen Xintaiming Machinery Equipment Co.,Ltd ,the leading company of air and hydraulic machine in China .     We have coustomers distribute in Germany, Hungary, Russia, India, Indonesia, Thailand,   Vietnam,  USA, Mexico,Brazil,Italy, Saudi Arabia, Bahrain, South Africa, Australia, Iran and so on more than 20 countries .

X.T.M Advantage
         Key aspects of the X.T.M success are:  Continuous investment in research & development (more than 7% of profits).

 First class quality of raw materials .

Specialized workforce (more than 150 employees),

Wide market service network throughout the country



Workforce & Facility




7500sq meter manufacturing facility ,moe than 150 full time employees , X.T.M is fully capable of handling the growing demand worldwide ,and offering excellent technology, solid qualit at highly competitive prices.




Quality Assurance




Cooperative Partners






Strong research and development ability,  powerful marketing ability ,commitment, expertise and dedication .
When it comes to hydraulic / pneumatic based press machines ,Please feel no hesitation to contract with X.T.M.
