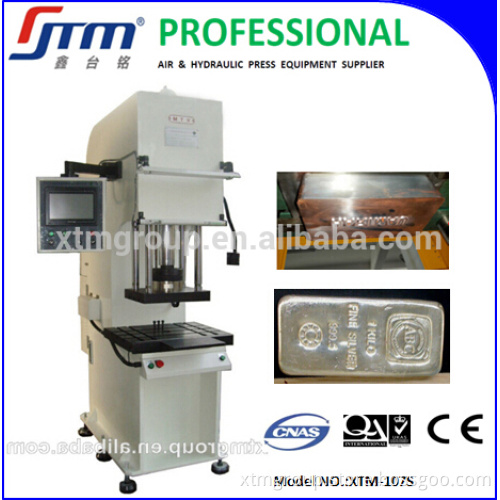

CNC CNC or not and Hydraulic Press Machine Type Silver Bar Stamping Hydraulic Press Machine

Specifications CNC C type hydraulic stamping machine

1.Highly CNC control

2.CNC machine for stamping

3.Payment term: T/T

4.ISO/CE approved

CNC CNC or not and Hydraulic Press Machine Type Silver Bar Stamping Hydraulic Press Machine
Features:

1.Drived by hydraulic pressure generated by motor, adopts advanced dual oil cylinder and hydraulic circuit, causes low heat while operates at a speed of more than 150mm per second;   2.Hydraulic pressure actuation of 1-14MPA, three-phase alternating-current supply, AC380V 50HZ or AC220 60 HZ, total consumptions of electricity of less than 3.7KW;   3.The frame adopts integrity welding technology with better regidity and stability of machine while wide convenient operation space;   4.Pressing force, stroke of cutting, dwell time, die height could be adjusted manually comply with pratical demand;   5.Intelligent functions: intellegent counter, force measurement monitor, intelligent temperature controler(Customized available);   6.Range of output force: 15ft-100ft.(Optionally).   CNC control functions:
                                     Macine detailed picture:



Scope of Applicatioins:

1. The machine is widely used in all kinds of metals stamping.
2.With multi-purpose of press, the series hydraulic press could be comprehensively used in a variety of materials, punching, stamping, shaping, riveting, bending,shear, tension, various small parts of the press-fit assembly.
Technical Parameter: (Technical parameter can be customized according to your special need ):

Model			XTM107S-10	XTM107S-20	XTM107S-30	XTM107S-50
Nominal Force			10T	20T	30T	50T
MAx. Hydraulic Working Pressure			12.5MPa	11.1MPa	15Mpa	16MPa
Knock-out Force			1.9T	2.5T	3.7T	5T
Worktable Height			750mm	750mm	750mm	750mm
Max. Operational Height			400mm	500mm	500mm	500mm
Max. Stroke			300mm	300mm	300mm	300mm
Dimensions of the Table	L-R		500mm	600mm	600mm	600mm
	F-B		400mm	400mm	400mm	400mm
Speed of Slide	Descending Speed		≥ 150mm/s	≥140mm/s	≥180mm/s	≥180mm/s
	Pressing Speed		≥25mm/s	≥12mm/s	≥14mm/s	≥9mm/s
	Returning Speed		≥132mm/s	≥100mm/s	≥120mm/s	≥96mm/s
Overall Size of the Machine			650×720×1850(mm)	650×720×1900(mm)	650×720×1900(mm)	650×720×1900(mm)
Power of Motor			2.2KW	3.7KW	3.7KW	5.5KW
