High Quality New Condition And Hydraulic Heat Press Machine Type Hydraulic Heat Press Machine With CE Approval

Specifications hydraulic heat press machine, heat press machine

Optimized design of hydraulic system;

temperature & pressure adjust

High Quality New Condition And Hydraulic Heat Press Machine Type Hydraulic Heat Press Machine With CE Approval

Product Description

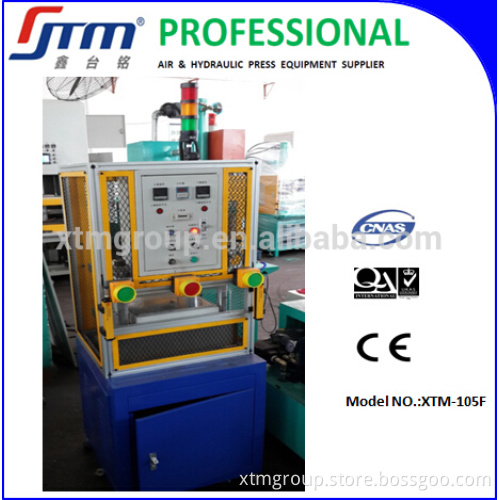

New condition and hydraulic heat press machine type high quality heat press machine CE approval  is a new type excellent performance hydraulic hot press. portable, easy, safe and convenience to operate.  Adopts advanced cartridge valve blocks  technology, good performance of rapidly close and slowly press.  High  precision, high speed.  Operated by double-button switch.  Selector switch modes of operation:jog (setup) and run (cycle).  Flexibly adjustable pressure dwell time and stroke.  Idea of doubled SLC(Security Light Curtain) makes it safe of operation.  Front Side Covers with emergencey switches.  Oil seals  adopts  ring-oriented technology, good performance of oil anti-leakage.   All pipes, flange and joint with vibrations proof and leakage proof design and setting.

Model of hydraulic heat press machine for sale

  1.standard type hydraulic heat press (four column down stroke)



2.H frame heat press (up stroke)



3.  H frame heat press (up stroke,machine body and hydraulic station separate)

4.Multi-layers hydraulic heat press


5.Hydraulic heat press with CNC control and conputer-human interface touch screen controller



Highlight of hydraulic heat press machine for sale       1.  Frame of 4-column 3-plate or H frame design for high grde of parallelism between the active plate and the work platform,and leads to high precision of pressing.       2.Tempreature of slide and baseplate can be controled separately.       3.Temperature of the same plate differs not more than 6%.




  Technical Parameter

Model		Unit	105F-5T	105F-10T	105F-15T	105F-25T
Cylinder nominal force		KN	50	100	150	250
Max. hydraulic pressure		MPa	8.5	17	15.6	20.4
Height of the table above floor		mm	780	780	780	780
Max. stroke of ram		mm	200	250	250	300
shut height	Max.	mm	210	260	260	400
dimension of table	L-R	mm	500	500	600	600
	F-B		240	300	400	400
Speed of slide	rapid close	mm/s	90	90	78	60
	slow press		13.5	8.5	9	11
	return		90	90	100	100
Power of motor		KW	2.2	2.2	3.7	3.7
overall dimension		mm	700*600*1940	700*600*1940	700*600*1940	700*600*1940

Note: your requirements of the machine specification of the hydraulic heat press machine for sale can be customization supported.

Scope of Application
Hydraulic heat press machine for sale can be widely uesd in:

1. Die cutting of the silica gel and plastic buttons of various handsets or remote controls.   2. Whole or partial cutting of plastic product.   3. Cutting of protective film of LCD screens for different sizes.   4. Precise cutting and half cutting of adhensive tapes.   5. Bulging and forming for various switches film and plate flim made of PV,PE,PC,etc.   6. Pressing and forming of flexible circuits for notebook computer keyboards.




Shenzhen Xintaiming Machinery Equipment Co., Ltd


  Shenzhen Xintaiming Machinery Equipment Co.,Ltd ,the leading company of air and hydraulic machine in China.     We have coustomers distribute in Germany, Hungary, Russia, India, Indonesia, Thailand, Vietnam, USA, Mexico, Brazil, Italy, Saudi Arabia, Bahrain, South Africa, Australia, Iran and so on more than 20 countries.


X.T.M Advantage

Key aspects of the X.T.M success are:  Continuous investment in research & development (more than 7% of profits).  First class quality of raw materials. Specialized workforce. Wide market service network throughout the country.



Workforce & Facility



7500sq meter manufacturing facility, moe than 150 full time employees, X.T.M is fully capable of handling the growing demand worldwide, and offering excellent technology, solid qualit at highly competitive prices.


Quality Assurance

Exibition & Visit


  Cooperative Partners Hydraulic heat press machine type and high pressure temperature adjustable heat press machine



Strong research and development ability, powerful marketing ability, commitment, expertise and dedication.
When it comes to hydraulic press or pneumatic based press machines, Please feel
no hesitate to contact with X.T.M .
