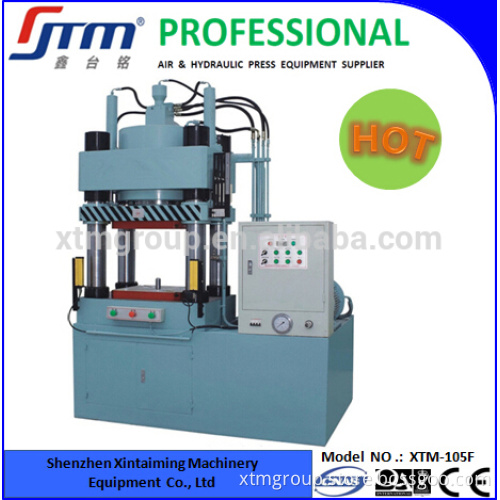

High Quality Products Hydraulic Press 100T Stamping Machine For Metal With CE Approved

Specifications metal stamping machine

1.High parallel precision,vertical accuracy

2.Non-load fast speed, slow pressing

3.self-lubricating

High Quality Products Hydraulic Press 100T Stamping Machine for Metal with CE Approved

Product Description    Operated by double-button switch.

 Selector switch modes of operation: jog (setup) and run (cycle).

 Flexibly adjustable pressure and stroke.

 Machine dwell time and stroke could be set specially as per processing requirements.

 Idea of doubled SLC (Security Light Curtain) makes it safe of operation.

 Emergencey switches for safety stop;

 Protective fence and the safety interlock can be added to upgrade the secure.

 Oil seals  adopts  ring-oriented technology, good performance of oil anti-leakage

 Highlight of YDK Series Hydraulic Press Machine                                          As a professional shenzhen machine manufacturer with more than 10-year experience in hydraulic
press manufacture, we support solid quality hydraulic presses all over the world.

     1.YDK series Hydraulic Press Machine for metal stamping is a new type of rapid upper positioning
lower pressing oil press. It adopts four-column structure with high guiding  precision. The machine is characterized by sensitive action, safe and reliably operation. All pipes, flange and joint with vibrations proof and leakage proof design and setting.

     2.As YDK Series hydraulic press dopts cylinder upper positioning and lower pressing working type, the working table remains stable, it can avoid work-piece misalignment due to work-piece movement when cylinder is in lower position for upper pressing so as to ensure pressing precision and reduce the rate of defective products.

     3. Two-stage speed control with sliding block, no load high and low speed profiling drawing and high speed back stroke.     Technical parameter                                                                                  (Technical parameter kan be customized according to client's need. Hydraulic press 100t included ):

Model		Unit	YDK-100	YDK-200	YDK-300	YDK-500	YDK-600
Cylinder nominal force		KN	1000	2000	3000	5000	6000
Max. hydraulic pressure		MPa	19	18	22	22	25
Max. stroke of ram		mm	200	200	200	200	200
shut height	Max.	mm	420	420	420	450	450
	Min.		220	220	220	250	250
dimension of table	L-R	mm	450	500	590	650	700
	F-B		500	550	650	700	750
Speed of slide	moving up	mm/s	150	150	150	150	150
	return		120	120	120	150	150
Overall size	L-R	mm	1470	1590	1715	1960	2030
	F-B		1150	1150	1210	1210	1400
	H		2210	2260	2350	2670	2780
Power of motor		KW	7.5	7.5	11	15	15
Approx. total weight		T	2.5	3.5	4	6	8.5

    Application scope                                                                                        Professional machine manufacture, machines with high quality and competitive price. The hydraulic press is mainly used in metal stamping industry, such as aluminum tag and bas stamping, silver bar stamping, coin stamping, and so on.



Except for metal stamping, the hydraulic press machine 100t can also used in the below application scope:
1. YDK Series Hydraulic Press Machine is designed for pressed precise watchcase, watchband, dishware, spectacle frame, jewelry, medal, picture frame, circuit board and other products.

 2. YDK Series Press Machine is applicable for other finished products, which are pressed through mould such as hard alloy product and grinding wheel products etc.                  More pictures


    More Detailed Pictures                                                                                               detailed pictures of the metal stamping machine:
