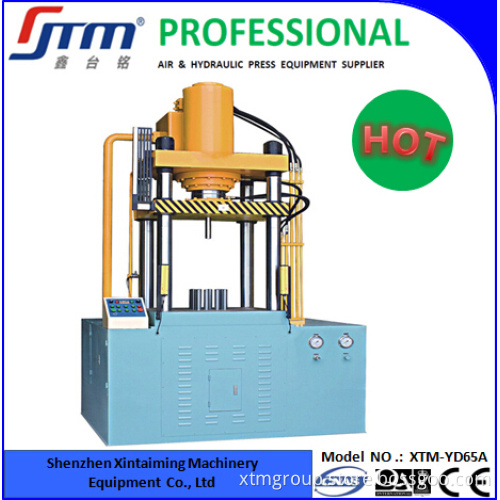

Four Column Double Action Deep Drawing Hydraulic Press Stainless Steel Pot Making Machine

Specifications Cartridge valve blocks technology;

Four pillar structure;

Equipped with hydraulic blank holder and automatic knock-out device.

Four Column Double Action Deep Drawing Hydraulic Press Stainless Steel Pot Making Machine

 ShenZhen Xintaiming Machinery Equipment Co,Ltd is  specialized in the designing and making: Hydraulic cutting /punching/molding/bending/hot press machine High speed punching machine CNC C-type hydraulic machine Servo press series IMD/IML hot press molding machine IMD/IML 3D punching machine and so on
Product Description
YD65A series Four column double action deep drawing hydraulic press is specially designed for
stainless steel pots making, it is the key equipment of stainless steel pots machinery.
  Low energy consumption;

  PC integrated circuit control;

  High speed and high efficiency;

  Flexibly adjustable pressure and stroke;

  Machine dwell time and stroke could be set specially as per processing requirements;

  Idea of doubled SLC(Security Light Curtain) makes it safer of operation;

  Protective fence and the safety interlock can be added to upgrade the secure;

  Adopts advanced cartridge valve blocks  technology,piping and oil leaks reduced;

  All pipes, flange and joint with vibrations proof and leakage proof design and setting ;
Deep Drawing steps of YD65A four column double action deep drawing hydraulic press




 Highlight of YD65A Stainless steel making machine
      1.Two-stage speed control with sliding block,no-laod high and low speed profiling drawing,
high speed back stroke;

    2.Imported famous and excellent products are adopted for hydraulic accessories, electric
elements and sealing elements.

Technical Parameter

Model		Unit	YD65A-45	YD65A-70	YD65A-100	YD65A-120	YD65A-150	YD65A-200	YD65A-250	YD65A-350	YD65A-450	YD65A-550	YD65A-650	YD65A-800
Main cylinder  force		KN	300	450	650	800	1000	1500	1700	2300	3000	3500	4500	5000
Main cylinder stroke		mm	450	450	500	550	550	550	600	650	650	750	750	750
Low cylinder force		KN	150	250	350	400	600	750	800	1200	1500	2000	2000	3000
Low cylinder stroke		mm	200	200	200	300	250	250	300	300	300	300	300	350
Stroke of knock-out		mm	130	200	200	200	250	250	300	300	300	300	300	350
Daylight opening	Max.	mm	650	700	800	850	850	920	1000	1100	1100	1200	1200	1300
	Min.		200	250	300	300	300	370	400	450	450	450	450	550
dimension of table	L-R	mm	450	490	550	600	600	750	850	950	1000	1100	1300	1400
	F-B		470	550	600	600	750	850	880	1000	1100	1200	1400	1500
Speed of slide	closing	mm/s	210	210	200	230	230	230	200	190	190	180	175	170
	press		35	28	24	35	30	20	24	22	22	21	12/20	15/22
	return		300	300	250	210	190	190	190	190	190	190	175	170
Overall dimension	L-R	mm	1520	1580	1670	1840	1860	2030	2150	2270	2340	2510	3950	4200
	F-B		1040	1120	1170	1220	1370	1520	1550	1810	1820	1970	1700	1800
	H		2690	2790	3060	3210	3325	3505	3780	4300	430	4680	4850	5250
Motor power		KW	5.5	7.5	11	15	18.5	30	30	37	45	55	55	75
Weight		T	1.8	2.5	3.2	4	6	8	9	13	15	18	22	33

 note: the specifications of the stainless steel making machine are customization supported.   Scope of Application
YD65A series of Four column double action deep drawing hydraulic press is specially developed for making stainless steel products, especially suitable for stainless steel pots making, pressing and forming aluminum and stainless steel products.
