CNC CNC Or Not And Four Column Double Action Deep Draw Press For Stainless Steel Cookware

Specifications CNC Control;

Four Pillar Structure;

Equipped With Hydraulic Blank Holder And Automatic Knock-Out Device;

ISO/CE.

CNC CNC Or Not And Four Column Double Action Deep Draw Press For Stainless Steel Cookware
Product Description

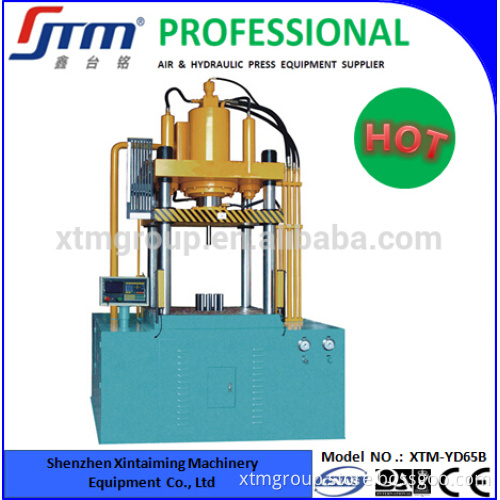

YD65B series Four column double action deep draw press is specially developed for pressing stainless steel cookware and aluminum cookware products. It is a new generation of stainless steel cookware machine. The main cylinder and lower cylinder are provided with pressure proportioning function, wonderful performance. It is the key equipment of cookware machinery.
    PLC computer control: full touch screen,precise programmed process control ;

    The main cylinder and lower cylinder are provided with pressure proportioning function;

    Flexibly adjustable pressure and stroke;

    Machine dwell time and stroke could be set specially as per processing requirements;

    Idea of doubled SLC (Security Light Curtain) makes it safer of operation;

    Protective fence and the safety interlock can be added to upgrade the secure;

    Adopts advanced cartridge valve blocks technology ,piping and oil leaks reduced;

    All pipes, flange and joint with vibrations proof and leakage proof design and setting.

           Deep Draw steps of YD65B Hydraulic Press




           Highlight of YD65B Deep Draw Hydraulic Press
          1.    PLC computer can store technical data of different drawing die so as to reduce repeat adjustment of pre-work when similar products are made,improve production efficiency.

      2.    The main cylinder and lower cylinder are provided with pressure proportioning function:

            1)   The main cylinder pressure proportioning is to reduce pressure loss during drawing so as to achive less load and high production capacity;

            2)   The lower cylinder proportioning is to reduce blank holding force automatically along with drawing height and blanking holding size of product so as to improve the yield of finished product.




Technical Parameter

Model		Unit	YD65B-120	YD65B-150	YD65B-200	YD65B-250	YD65B-350
Main cylinder  force		KN	800	1000	1500	1700	2300
Max. pressure of main cylinder liquid		MPa	22	21	20	21	17
Main cylinder stroke		mm	550	550	550	550	650
Low cylinder force		KN	400	600	700	800	1200
Low cylinder stroke		mm	200	250	250	300	300
Max. pressure of lower cylinder liquid		PMa	20	20	19	22	20
Stroke of knock-out		mm	200	250	250	250	300
Daylight opening	Max.	mm	850	850	920	920	1100
	Min.		300	300	370	370	450
dimension of table	L-R	mm	600	600	750	850	950
	F-B		600	750	850	880	1000
Speed of slide	closing	mm/s	230	230	230	220	190
	press		27-70 adjustable	27-65 adjustable	30-60 adjustable	20-53 adjustable	20-50 adjustable
	return		245	255	205	205	190
Rise speed of lower cylinder		mm/s	95	80	90	90	80
Height of workingtable above floor		mm	1150	1180	1220	1250	1470
Overall dimension	L-R	mm	1840	2050	2130	2230	2270
	F-B		1220	1510	1620	1650	1810
	H		3210	3480	3590	3680	4300
Motor power		KW	15	18.5	30	30	37
Weight		T	4.5	6.7	8.1	8.9	13.8

  Scope of Application
YD65B series Four column double action deep draw press is specially developed for pressing aluminum cookware products and stainless steel cookware, especially suitable for stretching aluminum cookware, aluminum sheets, pressing and forming aluminum and stainless steel products.
