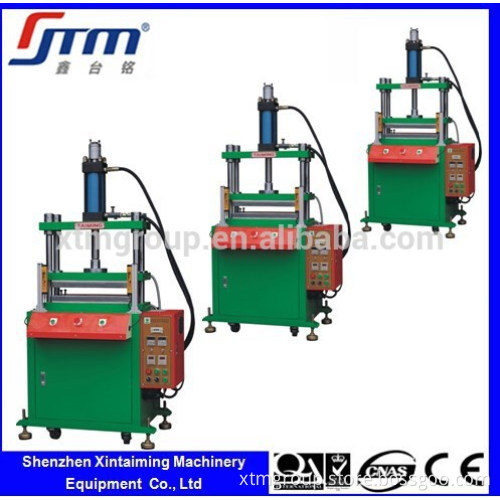

CE Approved Hot Switch Membrane Embossing Machine For Bulging Membrane Switch

Specifications Switch Membrane Embossing Machine

1.High Parallelism Of Workingtable

2.Homogeneous Temperature Distribution Over Platen

3.CE

CE Approved Hot Switch Membrane Embossing Machine For Bulging Membrane Switch

-----------------------------------------------------------------------------------------------------
Product Features   1.The four column three plate frame causes a smooth, pressing action between the active
plane and wok platform giving the machine a precise downward press;        2.The adjustalbe cylinder stroke from a fixed point ensures repeated precision of up to 0.01mm;    3.An ideal design of gathering the hydraulic components inside the centre of the overall frame,
which makes XTM-pro 105F more stalbe and decent;   4.An imported intelligent temperature controler and separately controled thermal paltens can be fed into the up and down molds, helping ensure a  differential of less than one degree and hence
ensuring safety;    5.An electronic ruler and security curtain light and displayer can be installed as a option to increase functionality and safety;           6.See the four Goblet shaped Press Feet and casters.
Scope of Applications

                         Working vedio: https://www.tudou.com/programs/view/PQ3I3CzR7O4/1. Raising, bulging, and forming of various film switches and film plates made of PV, PE, and PC etc.


2.Pressing and forming of flexible circuits and lines for notebook computer keyboards.


More specifictions

Item	XTM-Pro 105-3T	XTM-Pro 105-5T	XTM-Pro 105-10T	XTM-Pro 105-15T
Capacity(T)	1-3	1.5-5	3-10	5-15
Heating Size(mm)	500*240	500*240	500*240	500*400
Max.operating height(mm)	210	210	260	260
Cylinder Stroke(mm)	100-150	100-150	150-200	150-200
Power Supply(KW)	3ø380VAC,50/60HZ	3ø380VAC,50/60HZ	3ø380VAC,50/60HZ	3ø380VAC,50/60HZ
Heating Power(KW)	4.8	4.8	4.8	4.8
Motor Power(KW)	2.25	2.25	3.75	3.75



Company Profile

About Us

  Shenzhen Xintaiming Machinery Equipment Co., Ltd, professional shenzhen manufacturer
of hydraulic and pneumatic presses.

Shenzhen Xintaiming Machinery Equipment Co., Ltd. is professional researching and developing
shenzhen manufacturer which is specialized in the designing and making all kinds of hydraulic
and pneumatic presses.    1) CNC Servo press series   2) CNC hydraulic machines    3) MD/IML 3D punching machine    4) IMD/IML hot press molding machine     5) High speed punching machine    6) Hydraulic stamping/embossing/cutting /drawing press machine and so on     Our products have been exported to Germany, Hungary, Russia, India, Indonesia, Thailand,
Vietnam, the United States, Mexico, Brazil, Italy, Saudi Arabia, Bahrain, South Africa, Australia,
Iran and so on more than 30 countries and regions.


Why Choose Us



        Key aspects of the X.T.M success are:  Continuous investment in research & development (more than 7% of profits).

 First class quality of raw materials .

Specialized workforce (more than 150 employees),

Wide market service network throughout the country



7500sq meter manufacturing facility ,moe than 150 full time employees , X.T.M is fully
capable of handling the growing demand worldwide ,and offering excellent technology,
solid qualit at highly competitive prices.

Our Serive




 1. We use the world-famous brand accessories like Mitsubishi, Schneider, Siemens, Yuken,
Omron etc. Before packing machine, we debug machine by letting the machine run for 12 hours.   2. Before packing machine, the machine will run one day for testing oil leakage, repeat error,
and electrical parts performane. Meanwhile, there will be video giving to you (FAT video).   3. Any error happens within the period of guarantee, we offer the according parts for free.    4. we will offer overseas service if we(the Two Parties) can come to an overseas service agreement.

Other Products   (please follow the following websites to have a look at our Videos of XTM Series Press Machine!   https://www.tudou.com/programs/view/irSJOA0jcuw/ XTM-105H Series membrane cutting   https://www.tudou.com/programs/view/v_HWbn_AT8I/ XTM-106 Series Die casting parts TRIMMING MACHINE   https://www.tudou.com/programs/view/uutePmlLzpU/ XTM-109 Series IMD Machine   https://www.tudou.com/programs/view/_dYscK9jDe0/ XTM-106K Series Wood Die Cutting Machine

    FAQ   Q1: Are you a factory or trading company?  A: We are a factory.   Q2: Where is your factory located? How can I visit there?  A: Our factory is located in E Gong Ling West RD. 6-12, Liu Lian Community, Pingdi Town,
Longgang District, Shenzhen China. You can fly to Shenzhen Airport and then take the metro
or city bus to our factory. Warmly welcome to visit us!   Q3:How does your factory do about quality control? A: We have been CE/ISO certificated and have a complete quality controlling system. We test
all the accesories to ensure the quality, and adopt the advanced assembly technology during
production and debug before shipping.   Q4: What's the payment terms? A:T/T, 40% deposits; 60% balance before deliverying is available

So if you are interested in our machines and have any question, please feel no hesitate to contact with us.
Warmly welcome YOU to visit our factory!
