20 Ton XTM - 106K Four Column Hydraulic Die Cut Machine With CE

Specifications Four Column Hydraulic Die Cut Machine

Adjustable Dweell Time;

Pressure, Flow Rate, Long-Term Dwell Can Be Custom-made;

CE.

20 Ton XTM - 106K Four Column Hydraulic Die Cut Machine With CE   XTM-106K Die Cut Machine Advantages

      1. Enhance productivity, Labor-saving.     2. Low consumption,low maintainance.     3. Safety,convenient operation.     4. Intelligent functions,easy operation.

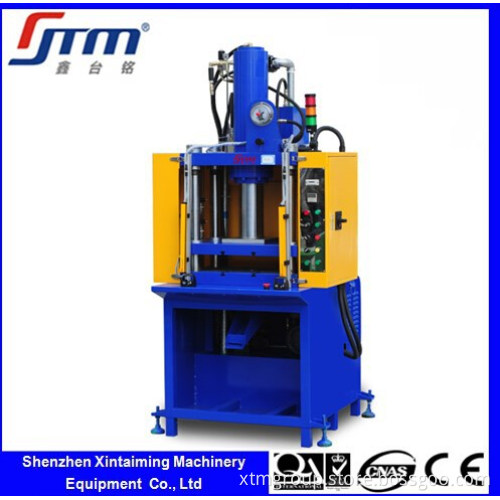

  XTM-106K Die Cut Machine Pictures


XTM-106K Die Cut Machine Technical parameter
(Technical parameter kan be customized according to client's need ):

Model			XTM106K-10	XTM106K-20	XTM106K-30	XTM106K-40	XTM106K-50	XTM106K-60
Nominal Force			10T	20T	30T	40T	50T	60T
Max. Hydraulic Working Pressure			8MPa	16MPa	17Mpa	15.5MPa	15.6MPa	15.5MPa
Knock-out Force			7.6T	3T	3.9T	4.3T	4.8T	5.3T
Worktable Height			780mm	780mm	780mm	780mm	780mm	780mm
Max. Operational Height			400mm	400mm	500mm	500mm	500mm	500mm
Max. Stroke			200mm	300mm	300mm	300mm	300mm	300mm
Dimensions of the Table	L-R		500mm	500mm	500mm	600mm	600mm	600mm
	F-B		400mm	400mm	400mm	500mm	500mm	500mm
Speed of Slide	Descending Speed		≥ 120mm/s	≥142mm/s	≥140mm/s	≥142mm/s	≥142mm/s	≥150mm/s
	Pressing Speed		≥19mm/s	≥16mm/s	≥12mm/s	≥9mm/s	≥7mm/s	≥7mm/s
	Returning Speed		≥100mm/s	≥100mm/s	≥100mm/s	≥82mm/s	≥74mm/s	≥85mm/s
Overall Size of the Machine			700×600×1920(mm)	700×600×2050(mm)	700×600×2250(mm)	700×600×2500(mm)	700×600×2550(mm)	700×600×2600(mm)
Power of Motor			3.75KW	2.2KW	3.7KW	3.7KW	5.5KW	5.5KW

    XTM-106K Die Cut Machine Company Pofile  As one of the biggest and most specilized manufacturers of hydraulic and pneumatic presses in China Shenzhen, we provide products with solid quality and competitive price all over the world.
 Who We Are 1. We manufactures hydraulic and pneumatic presses machine and provides overall service;   2. We master the latest in hydraulic and control technologies and backed by 20 years of worldwide manufacturing expertise;   3.We have experienced engineers ;   4.Presses can be customized to fit your specific needs and specifications;    5. We are 20 years large-scale factory.
How We Success
Key aspects of the X.T.M success are:  Continuous investment in research & development (more than 7% of profits).

 First class quality of raw materials .

Specialized workforce (more than 150 employees),

Wide market service network throughout the country    Strong research and development ability, powerful marketing ability, commitment, expertise and
dedication. When it comes to hydraulic / pneumatic based press machines, Please feel no hesitate
to contact with X.T.M.  Warmly welcome to visit our factory!
