Inductive integrated forming machine

Inductive integrated forming machine
Inductance integrated molding machine is designed according to customer requirements and design, the design of the CNC operation, simple operation, easy to use, through the touch control screen, PLC of the servo motor, oil cylinder with proportional valve cylinder regulation, NC to adjust the height of the products, realize the automatic feeding of the cable coil, automatic feeding powder, precision press, coil lead synchronous protection, so as to meet the requirements of customers. Effectively improve the production speed and production efficiency.
Inductance integrated molding machine equipment has the following characteristics:
1, covers an area of small.
2, high yield.
1, 2 people can operate more than 3 machines.
4, low cost of equipment procurement.
5, equipment can be stable operation for a long time.

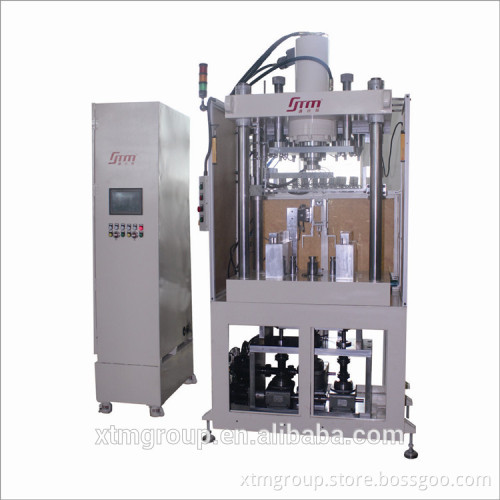

The molding machine adopts four column type structure, hydraulic cylinder at the top of the upper beam, cylinder axis and the forming die with quick mold change with a hanging head, cylinder axis is provided with a displacement sensor, can detect and control the oil cylinder stroke, hydraulic system installed pressure sensor, can detect and control oil cylinder forming force, convenient monitoring of the cylinder pressure and displacement in the molding, convenient and top servo system combination, product forming action. Intermediate device is arranged at the position automatic feeding mechanism of powder machine, four stainless steel powder containing, each cartridge with a pneumatic vibrator, powder quantity sensor, can clearly know powder box there is no powder and smooth powder in the powder groove. Four cartridges each with an aluminum powder groove, each powder groove is arranged below a linear oscillator, convenient powder into the mould of the cartridges. The mould powder compact above the belt level detection sensor, with no positive mold product launch detection sensor. The servo motor is used to drive the precision ball screw module to complete the device, and the powder feeding is uniform and the efficiency is high. Equipment at the bottom of the beam take off feed servo device and coil lead synchronous lifting servo device for each set of removal of feeding servo device maximum de force 4, stripping stroke 50mm, its function is in before molding to form filling powder cavity, forming after the product falling out. Coil lead synchronous lifting servo device function is: equipment in forming need to product of two flat copper wire to suppress and with the decrease of the main oil cylinder and decreased at the same time, so as not to give ear wire bent or cut off caused by quality good. The two sets of servo device can be automatic and equipment linkage work, but also can be controlled manually manually, according to the product needs any set of travel and location.
Security: equipment with large amount of testing and sensor, positive equipped with sensors, provided on the face of safety grating, around the sides and back with safe protective door, greatly reflect the safety performance of the equipment, make employee operation safety and product and equipment safety guaranteed, expansion of the equipment control system, ready to be with peripheral reclaimer, send manipulator connected, improve equipment efficiency and safety.
